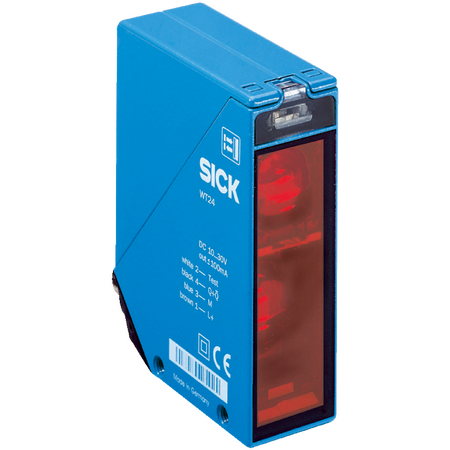

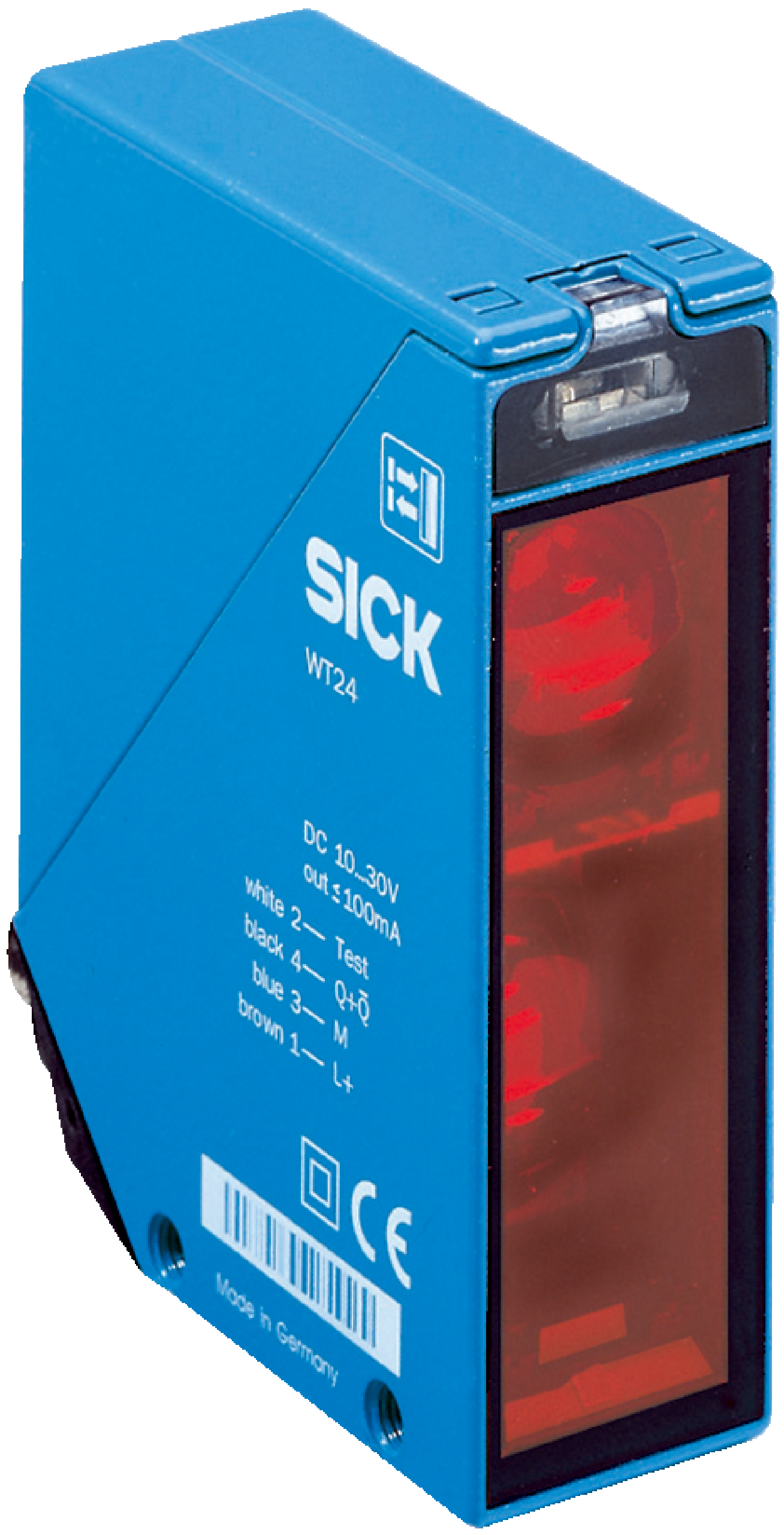

Photoelectric Proximity Sensor WT24-2R210 | IP67 Rated | Infrared LED | 100 mm to 2,500 mm Sensing Range | by SICK
The WT24-2R210 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 100 mm to 2,500 mm with background suppression. Its robust IP67-rated metal housing ensures durability in harsh environments, while the fast response time of ≤ 10 ms makes it ideal for material handling and safety monitoring applications. With a wide supply voltage range and reliable relay output, this sensor is perfect for various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 2,500 mm
- Light source: Infrared LED
- Light spot size at 2,500 mm: Ø 80 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Operating temperature range: –40 °C to +60 °C
- Storage temperature range: –40 °C to +75 °C
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal zinc diecast housing with IP67 rating
- Sensing range from 100 mm to 2,500 mm using infrared LED light
- Relay output with change-over contacts and selectable light/dark switching
- Fast response time of ≤ 10 ms and switching frequency of 10 Hz
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
- Terminal connection with M16 gland for secure wiring
- Robust operation in ambient temperatures from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of less than 2 VA reduces energy usage
- Long operational lifetime reduces waste and replacement frequency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT24-2R210 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
