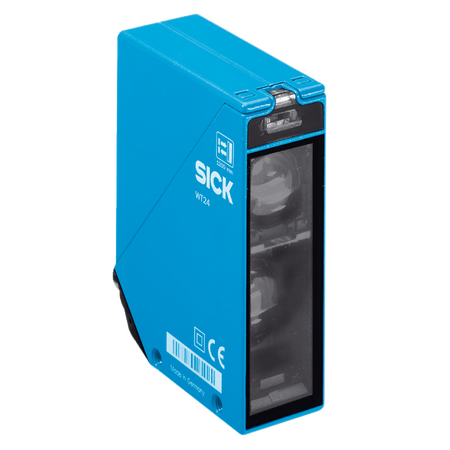

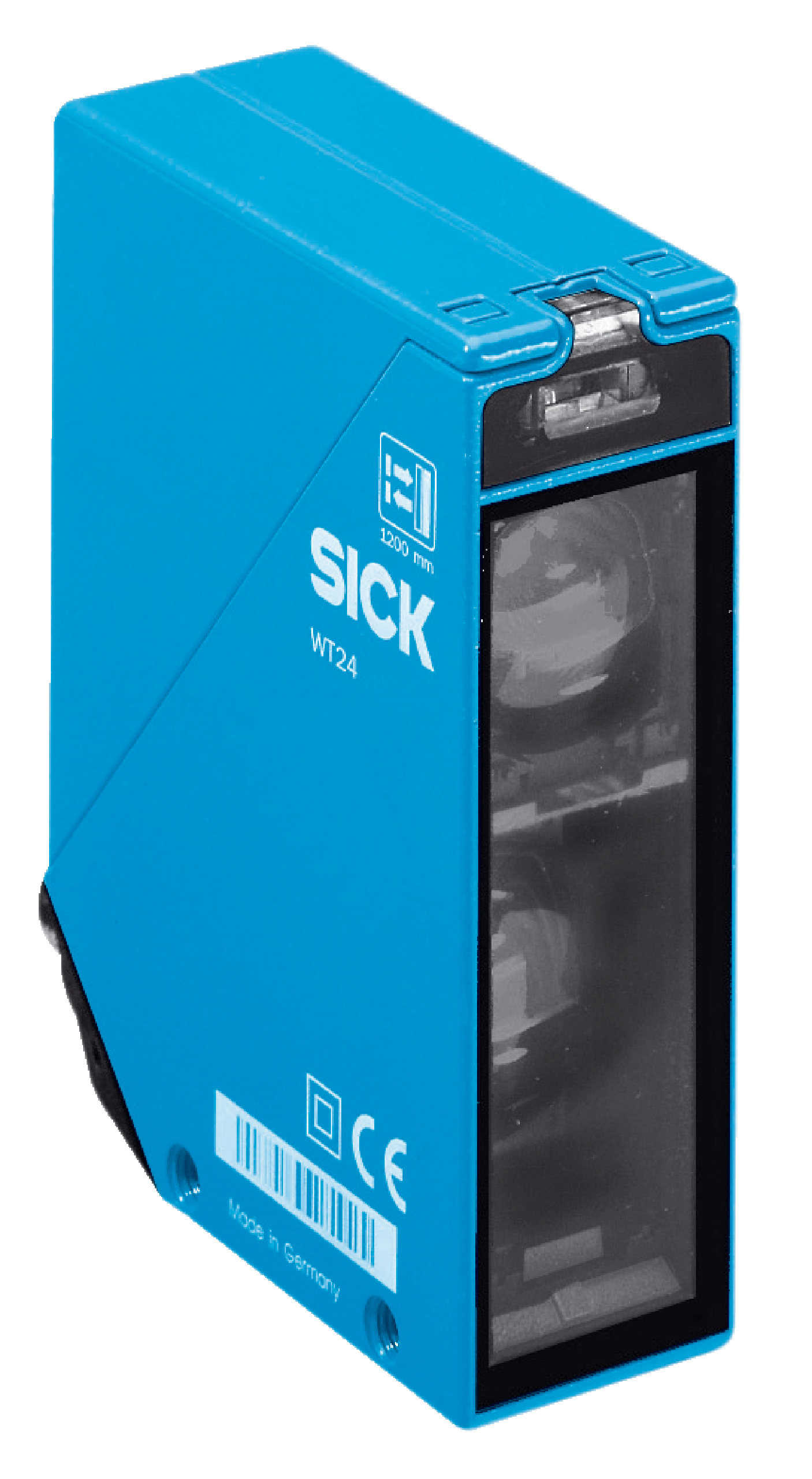

Photoelectric Proximity Sensor WT24-2R240 | IP67 Rated | Adjustable Sensing Range | Background Suppression | by SICK
The WT24-2R240 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1,200 mm and a robust IP67 rating for dust and water resistance. With a visible red light LED source and front screen heating, it ensures reliable operation in harsh environments, making it ideal for material handling, safety monitoring, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Industrial photo sensor, SICK WT24 sensor
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 509 years
- Mission time: 20 years
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED source
- Adjustable sensing range from 100 mm to 1,200 mm
- Front screen heating for reliable operation in harsh environments
- Relay output with change-over contacts
- Selectable light/dark switching mode
- High protection rating IP67 for dust and water resistance
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption under 2 VA reduces energy usage
- Durable metal zinc diecast housing extends product life and reduces waste
- Front screen heating prevents sensor failure in cold environments, reducing downtime and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT24-2R240 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
