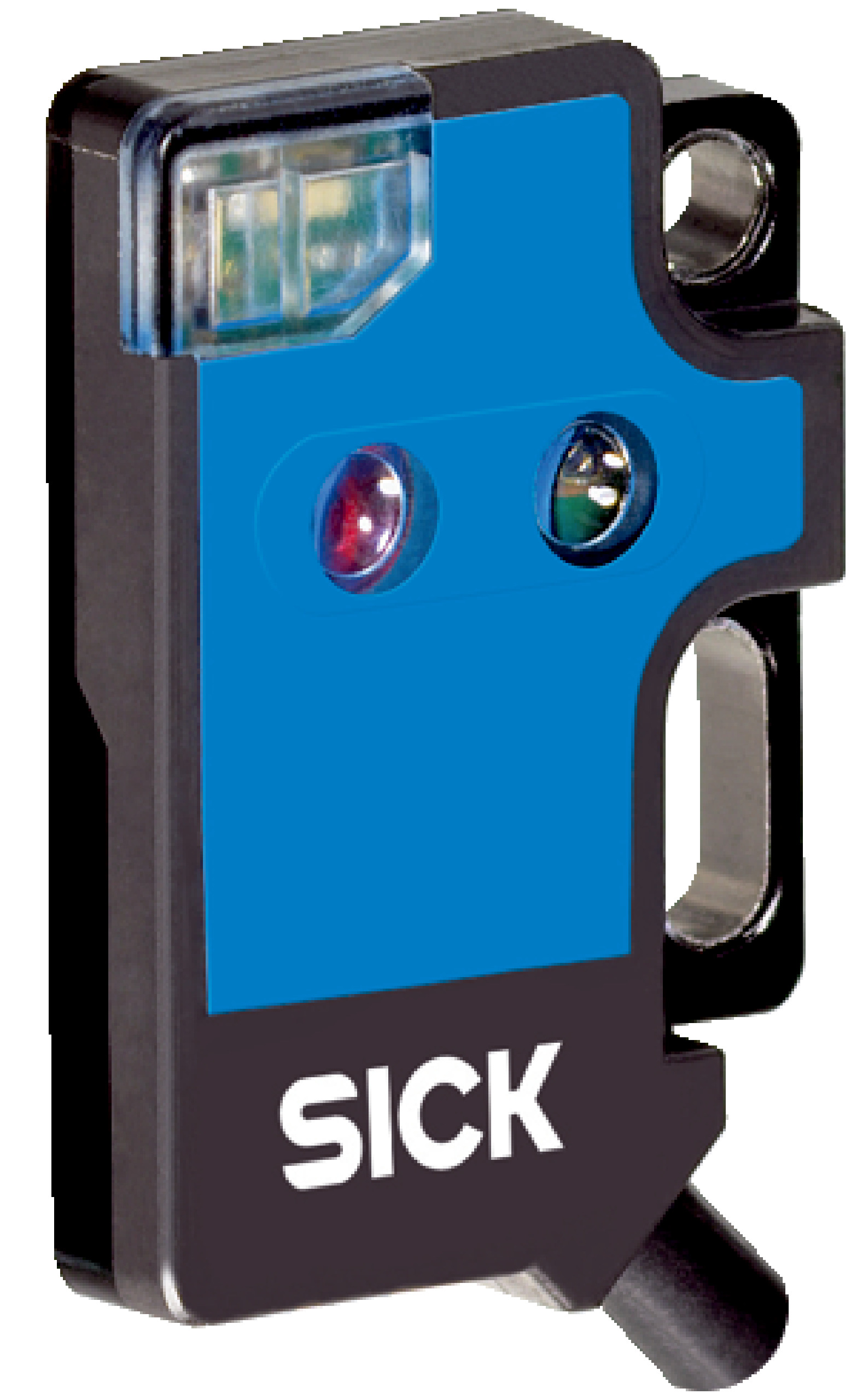

Photoelectric Proximity Sensor WT2F-N140 | NPN Output | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The WT2F-N140 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 18 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing processes. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: NPN
- Signal voltage PNP HIGH/LOW: Approx. V S – 1.8 V / 0 V
- Signal voltage NPN HIGH/LOW: Approx. V S / < 1.8 V
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 660 nm wavelength
- Sensing range from 2 mm to 18 mm
- NPN switching output with light switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Compact rectangular plastic housing
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-N140 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
