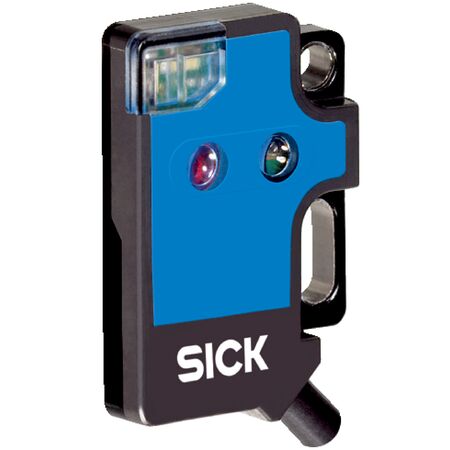

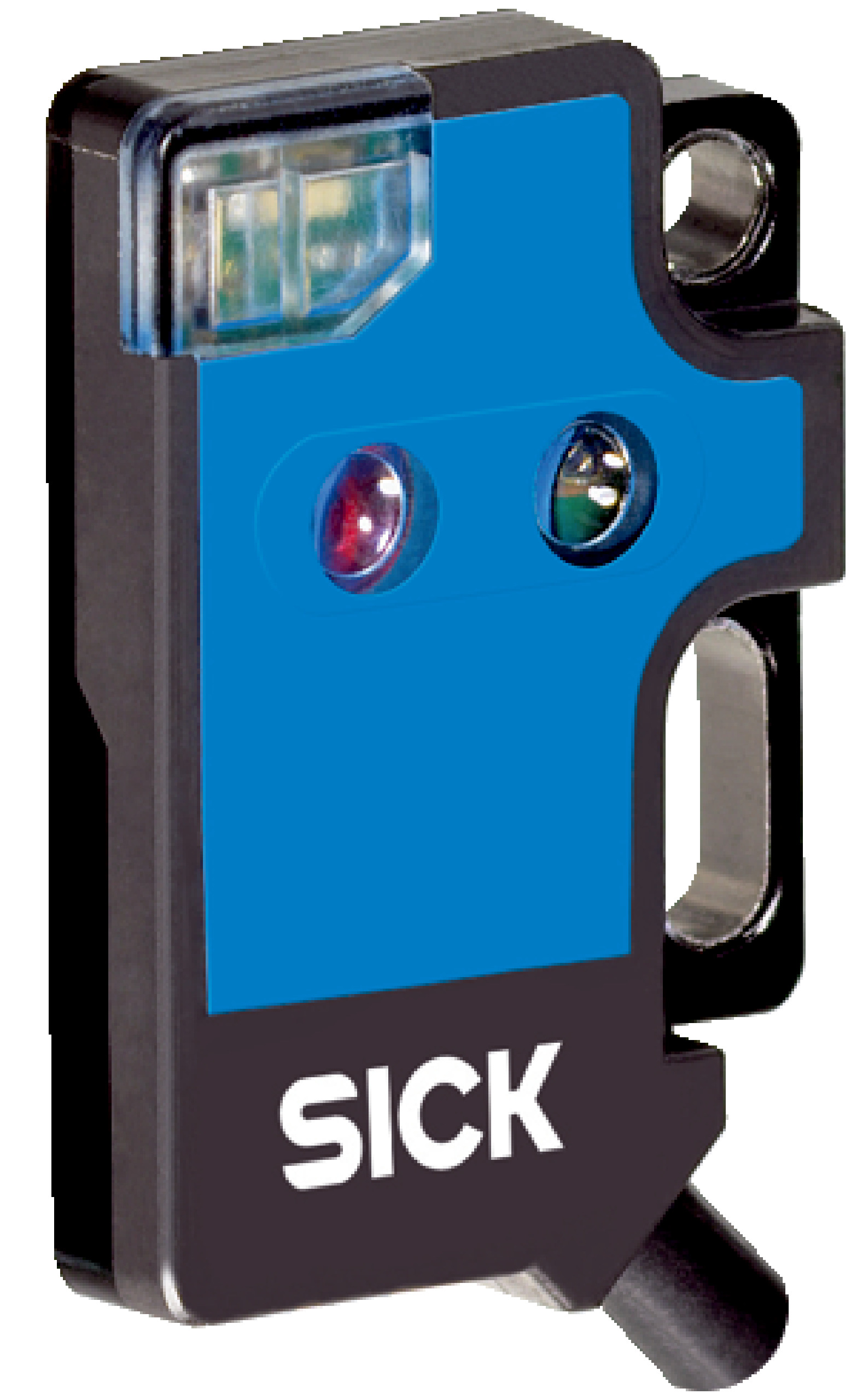

Photoelectric Proximity Sensor WT2F-N170 | NPN Output | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT2F-N170 is designed for precise object detection in industrial automation. With a high switching frequency of 1000 Hz and a fast response time of ≤ 0.5 ms, it ensures reliable performance. The IP67 rated enclosure provides excellent dust and water protection, making it ideal for manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: NPN
- Switching mode: Light switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current Imax: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Ambient temperature, storage: –40 °C to +75 °C
- Wave length: 660 nm
- Light source: LED
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular plastic housing with visible red LED light source
- Sensing range from 1 mm to 9 mm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- NPN switching output with light switching mode
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT2F-N170 Photoelectric Proximity Sensor is available now for immediate purchase. Ideal for industrial automation and precise object detection applications.
