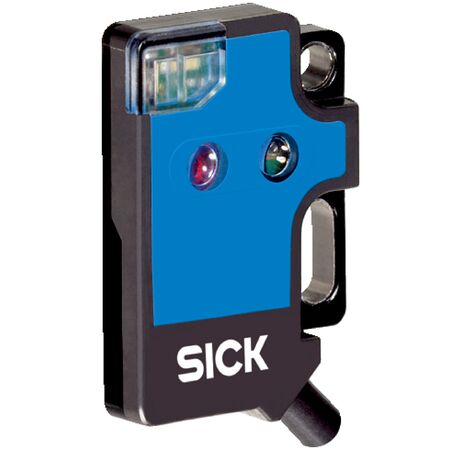

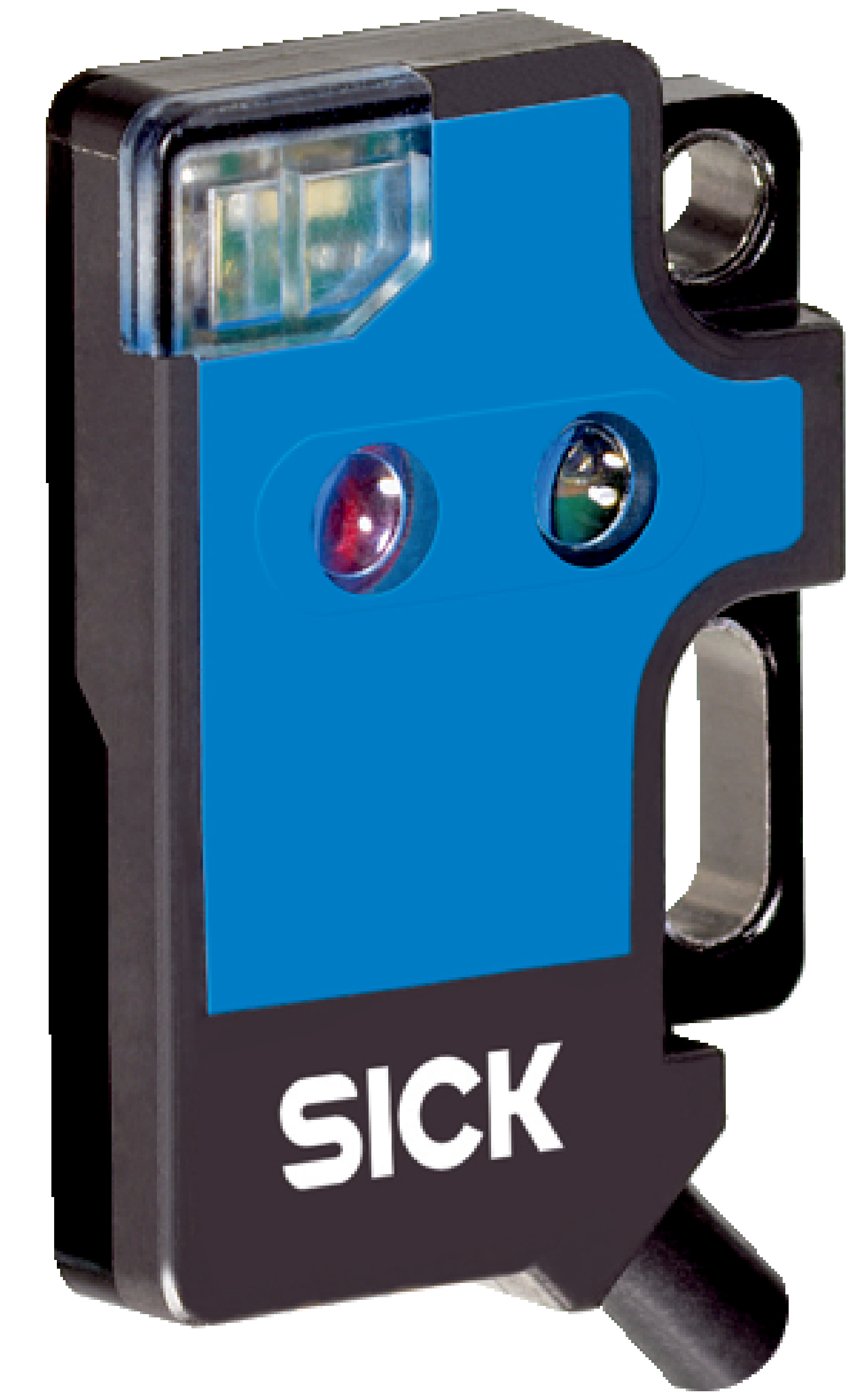

Photoelectric Proximity Sensor WT2F-N180 | NPN Output | IP67 Rated | 4 mm to 115 mm Sensing Range | by SICK
The WT2F-N180 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 4 mm to 115 mm and a robust NPN output. With a visible red light LED at 660 nm and an IP67 enclosure rating, it ensures reliable performance in challenging environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 4 mm to 115 mm
- Light source: LED, visible red light, 660 nm wavelength
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: NPN, light switching mode
- Signal voltage PNP HIGH/LOW: Approx. V S – 1.8 V / 0 V
- Signal voltage NPN HIGH/LOW: Approx. V S / < 1.8 V
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m, PVC cable
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic (PC)
- Optics material: Plastic (PC)
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 660 nm wavelength
- Sensing range from 4 mm to 115 mm
- NPN switching output with light switching mode
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP67 enclosure rating
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste
- Long service life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-N180 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
