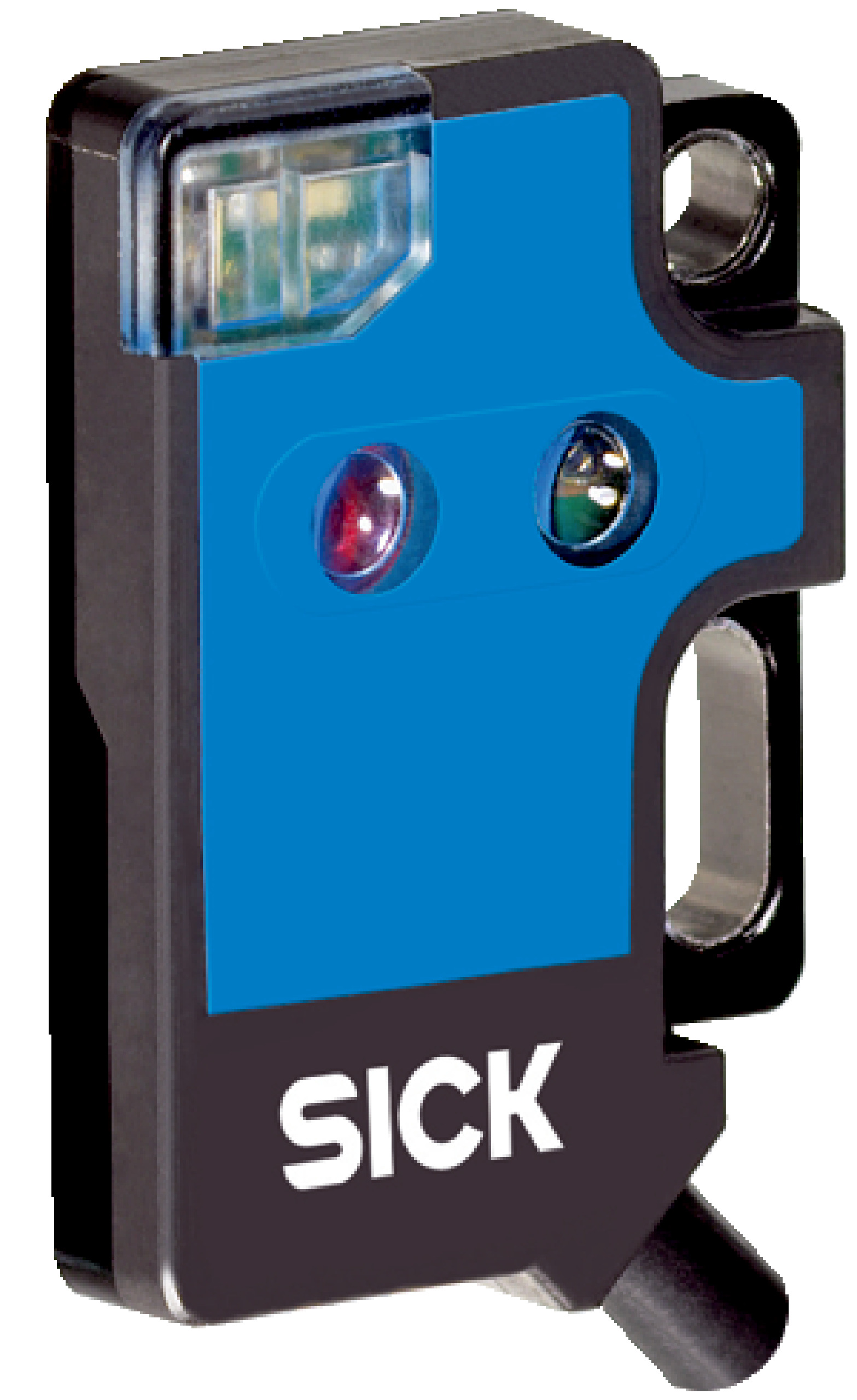

Photoelectric Proximity Sensor WT2F-P140 | IP67 Rated | Fast Response Time | High Switching Frequency | by SICK
The WT2F-P140 Photoelectric Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and manufacturing process control. Built for durability and efficiency, this sensor is perfect for safety monitoring in machinery and position sensing in assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Switching mode: Light switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Wave length: 660 nm
- MTTFD: 1,526 years
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range from 2 mm to 18 mm
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Operating temperature range from –20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-P140 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
