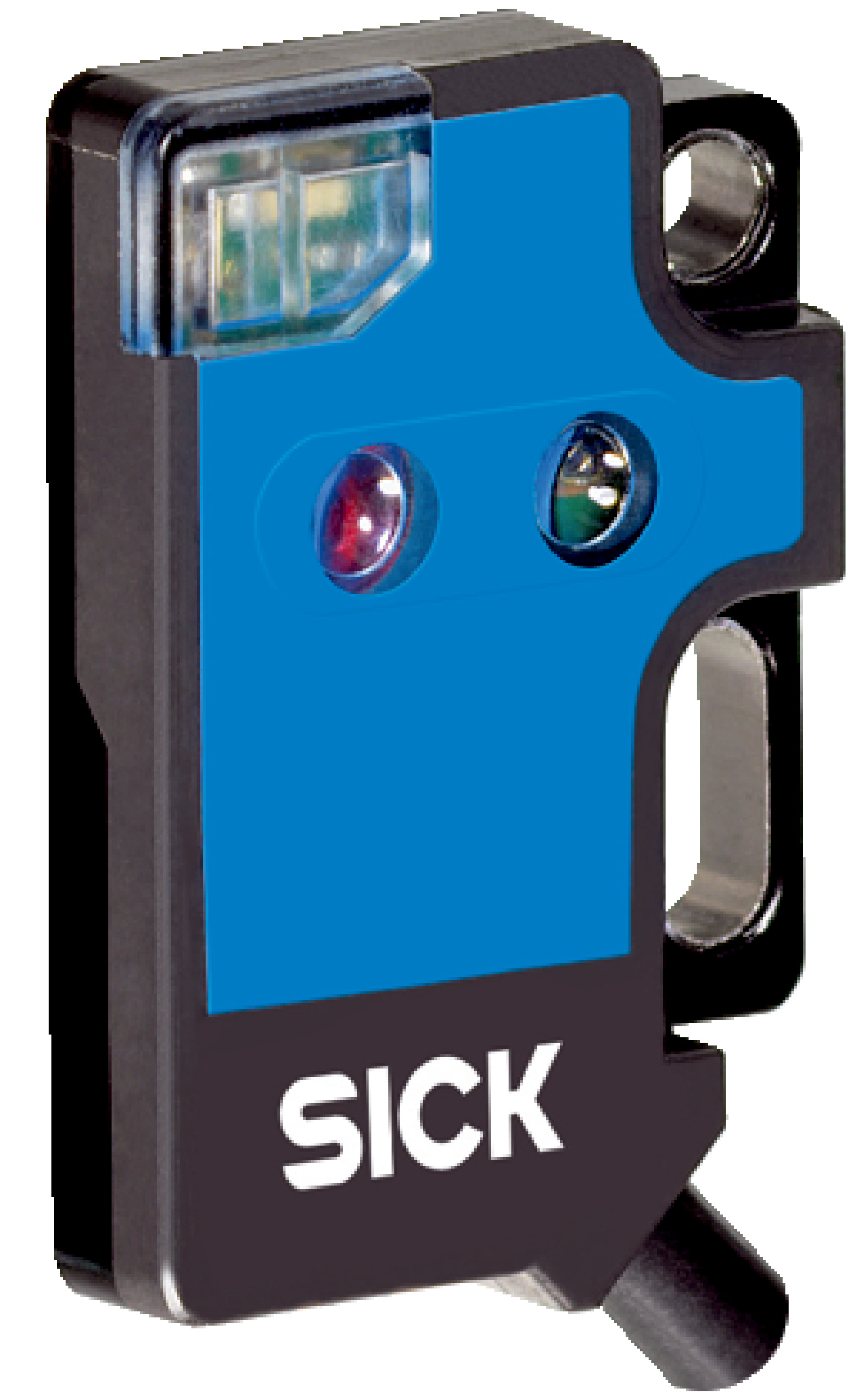

Photoelectric Proximity Sensor WT2F-P150 | IP67 Rated | 2 mm to 34 mm Sensing Range | Fast Response Time | by SICK
The WT2F-P150 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 34 mm and a fast response time of ≤ 0.5 ms, it ensures reliable performance in safety and control systems. Its IP67 rating provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 34 mm
- Light source: LED with 660 nm wavelength (visible red light)
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length, PVC material
- Cable diameter: 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic (PC)
- Enclosure rating: IP67
- Operating temperature range: -20 °C to +55 °C
- Storage temperature range: -40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range from 2 mm to 34 mm
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-P150 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
