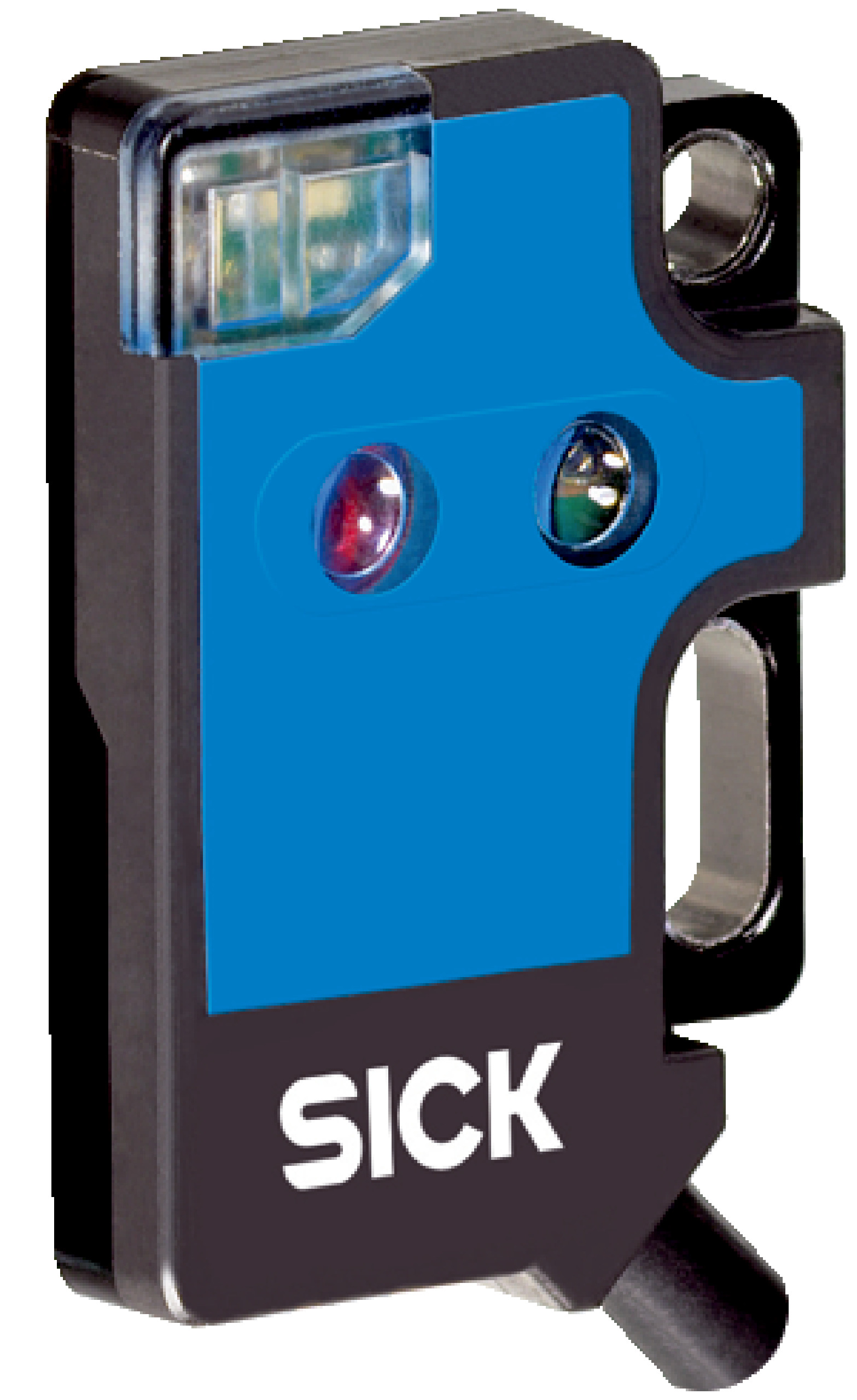

Photoelectric Proximity Sensor WT2F-P240 | IP67 Rated | 1000 Hz Switching Frequency | Fast Response Time | by SICK
The WT2F-P240 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a robust IP67 enclosure, it features a high switching frequency of 1000 Hz and a fast response time of ≤ 0.5 ms, making it ideal for safety and control systems. This sensor operates efficiently with a visible red light LED, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Output current max: ≤ 50 mA
- Signal voltage PNP HIGH/LOW: Approx. Vs – 1.8 V / 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- MTTFD: 1,526 years
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 660 nm wavelength
- Sensing range from 2 mm to 18 mm
- PNP switching output with light switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 enclosure rating
- Reverse polarity and short-circuit protection included
- Cable with M8 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P240 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
