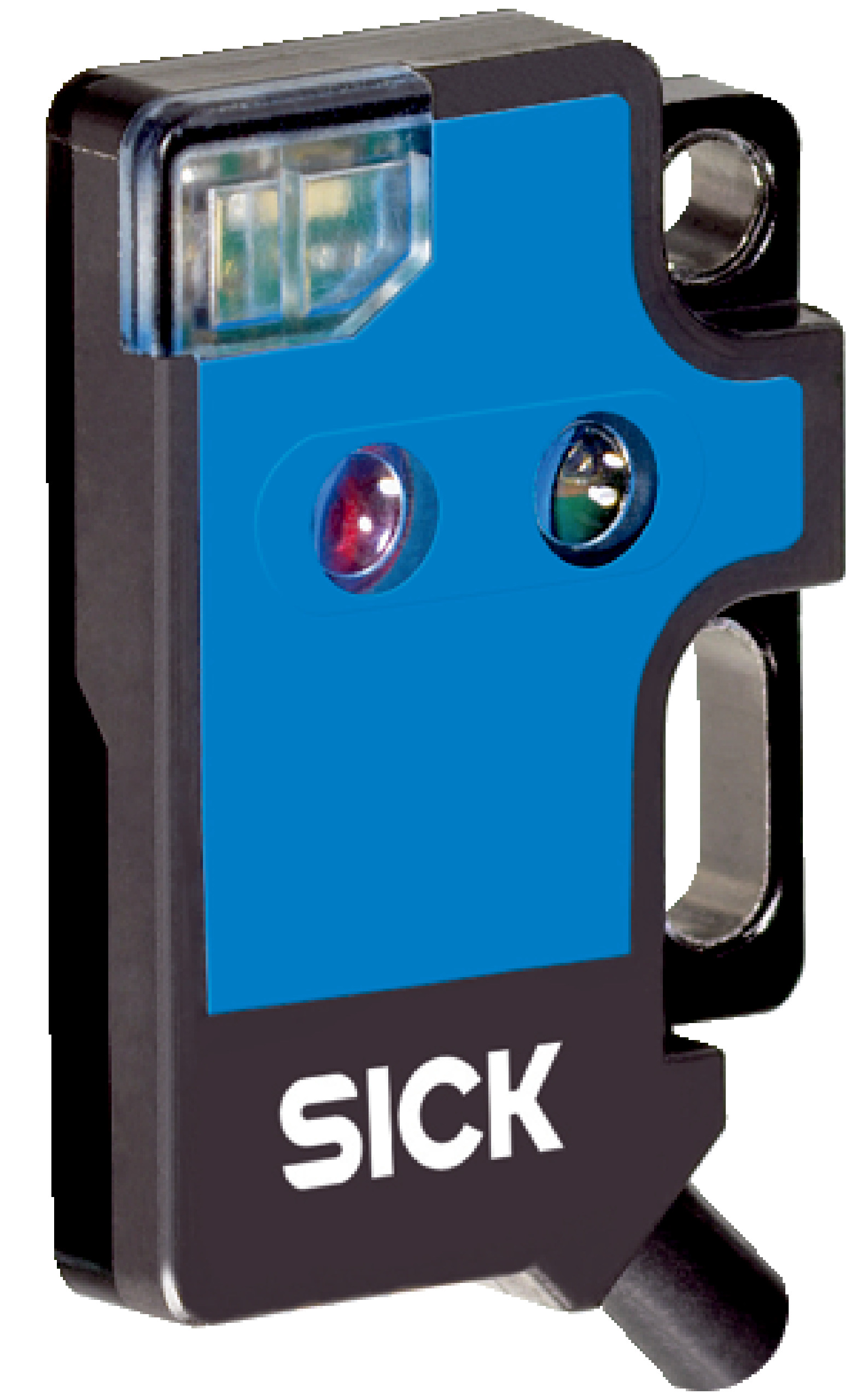

Photoelectric Proximity Sensor WT2F-P250 | IP67 Rated | 2 mm to 34 mm Sensing Range | Fast Response Time | by SICK
The WT2F-P250 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 34 mm and a fast response time of ≤ 0.5 ms, it ensures reliable performance in safety and control systems. Its IP67 rating provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 34 mm
- Light source: LED with 660 nm wavelength (visible red light)
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range from 2 mm to 34 mm
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- IP67 rating ensures long service life in harsh environments, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P250 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
