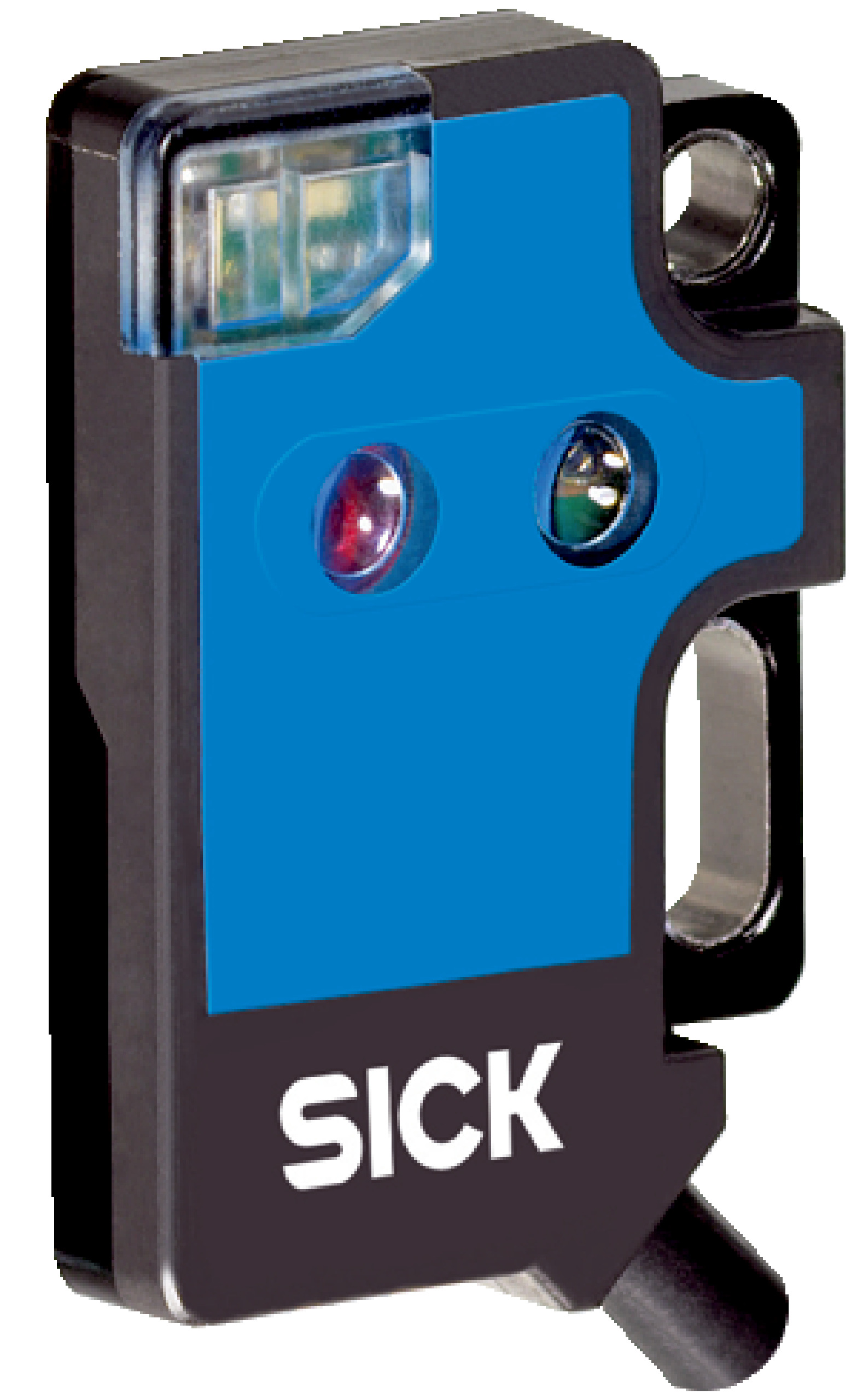

Photoelectric Proximity Sensor WT2F-P270 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The WT2F-P270 Photoelectric Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1000 Hz and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Switching mode: Light switching
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic, PVC
- Cable diameter: 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic, PC
- Optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Wave length: 660 nm
- Light source: LED
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular plastic housing with visible red LED light source
- Sensing range from 1 mm to 9 mm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Cable with M8 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WT2F-P270 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
