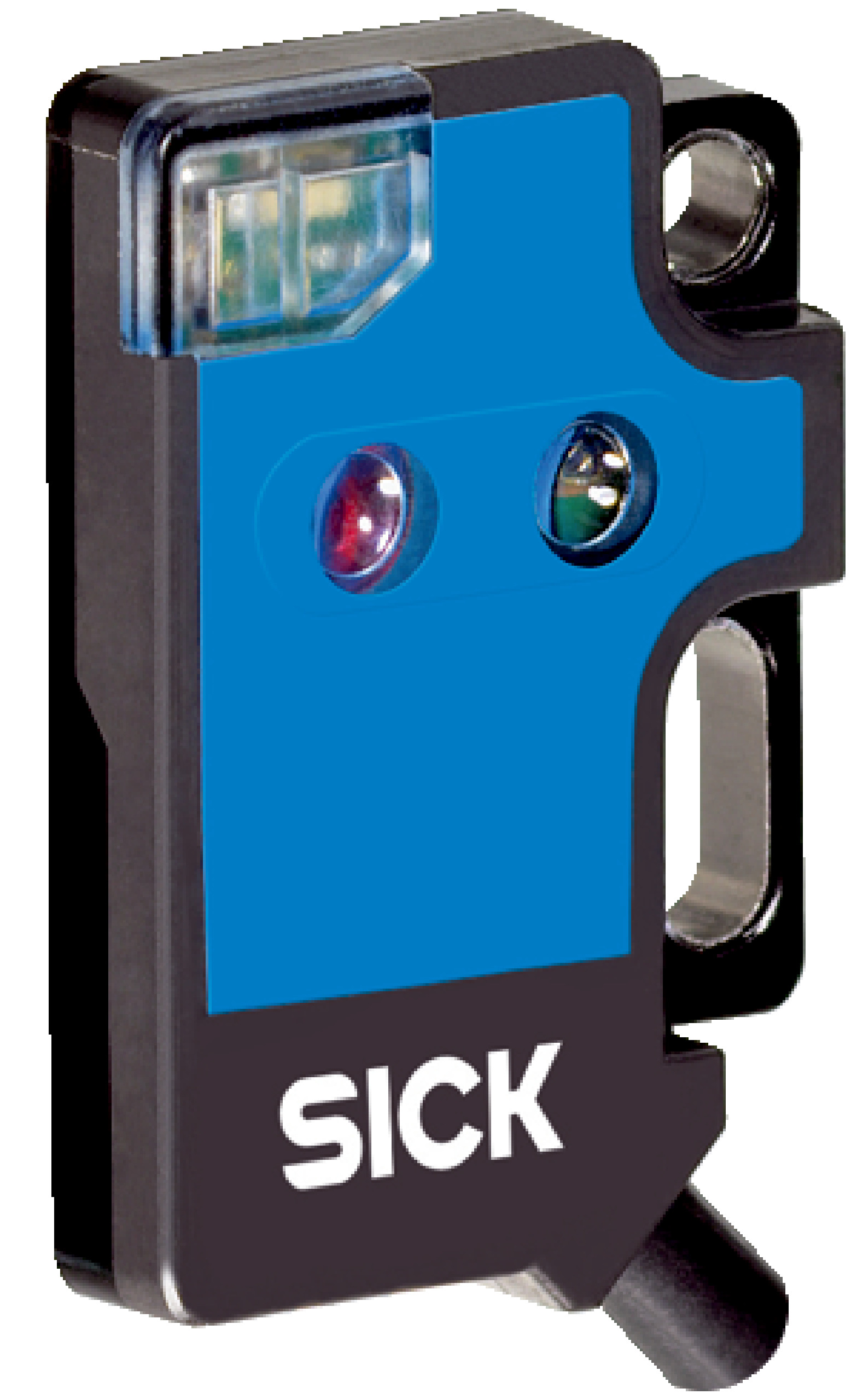

Photoelectric Proximity Sensor WT2F-P280 | 4mm to 115mm Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT2F-P280 is designed for precise object detection in industrial automation, featuring a sensing range of 4mm to 115mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 4 mm to 115 mm
- Light source: LED with 660 nm wavelength
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 1,526 years
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular plastic housing with visible red LED light source
- Sensing range from 4 mm to 115 mm
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- PNP switching output with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P280 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
