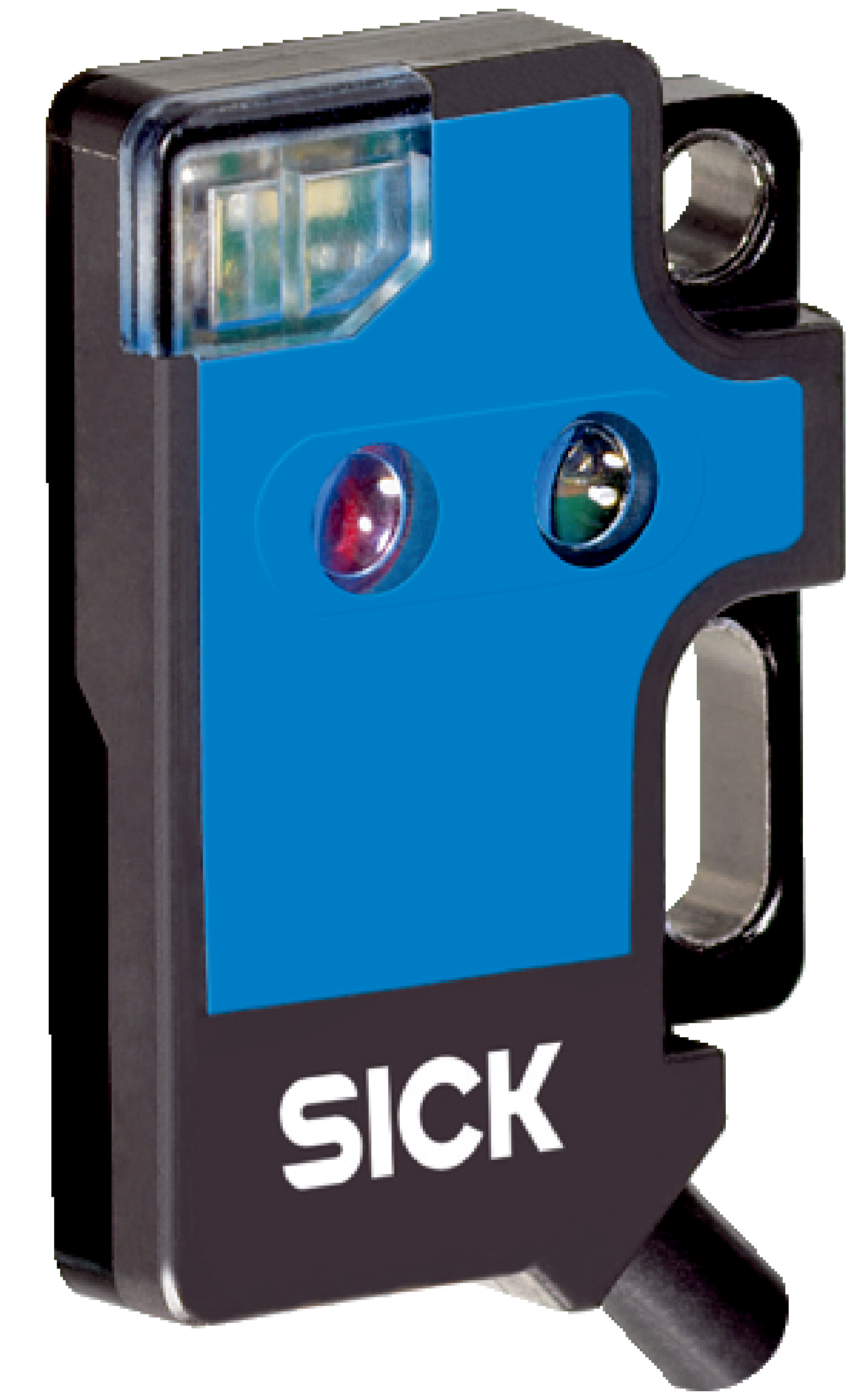

Photoelectric Proximity Sensor WT2F-P440 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The WT2F-P440 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 2 mm to 18 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water resistance, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 18 mm
- Light source: LED with 660 nm wavelength
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Cable material: Plastic PVC, diameter 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- MTTFD: 1,526 years
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular plastic housing with visible red LED light source
- Sensing range from 2 mm to 18 mm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- PNP switching output with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P440 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
