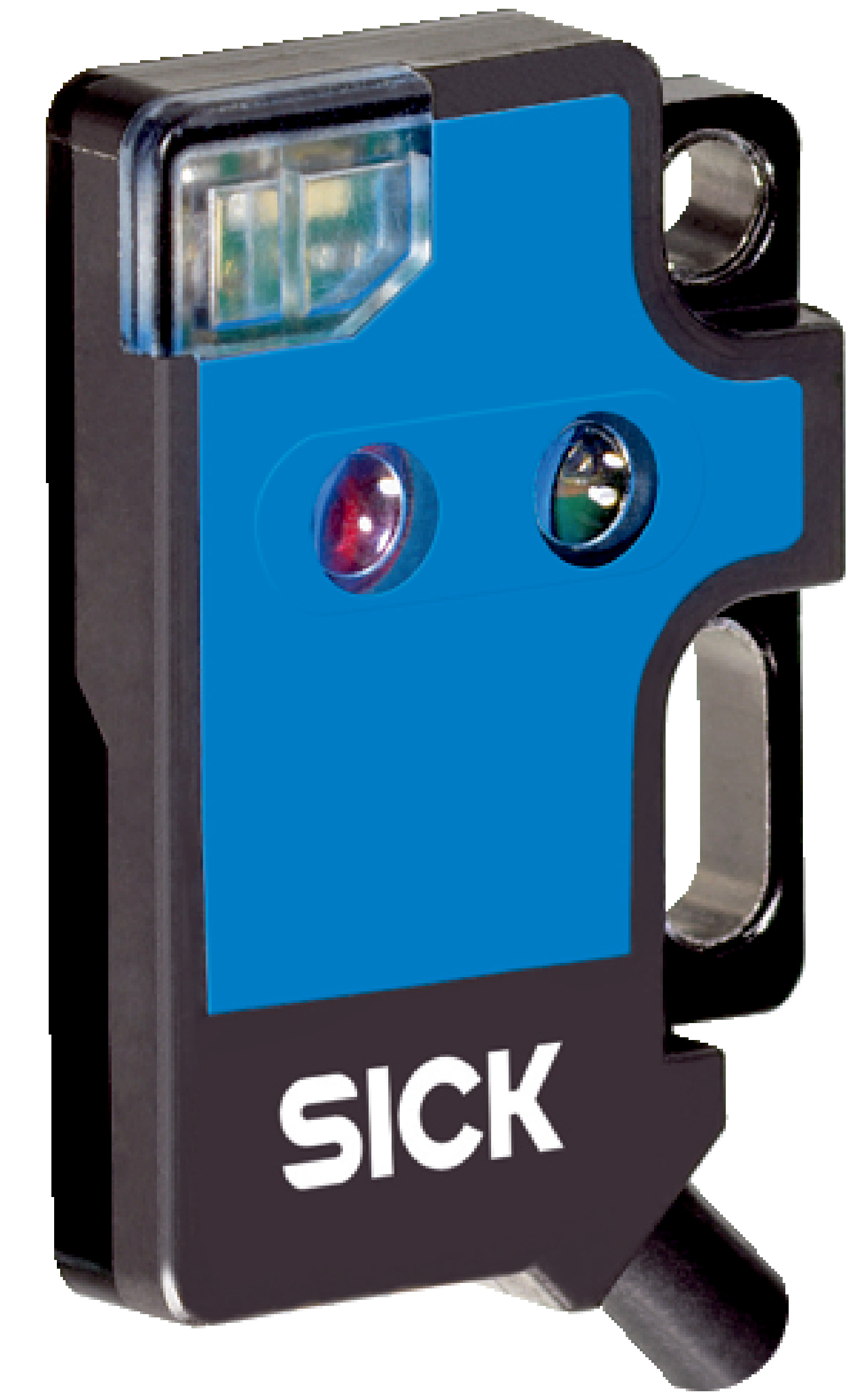

Photoelectric Proximity Sensor WT2F-P450 | IP67 Rated | 2 mm to 34 mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT2F-P450 is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 34 mm and a fast response time of ≤ 0.5 ms, it ensures reliable performance in safety and control systems. Its IP67 rating provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 34 mm
- Light source: Visible red LED, wavelength 660 nm
- Supply voltage: 12 V DC to 24 V DC with ripple < 5 V pp
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Cable material: Plastic, PVC, diameter 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing and optics material: Plastic, PC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular plastic housing with visible red LED light source
- Sensing range from 2 mm to 34 mm
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Cable with M8 male connector, 4-pin, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P450 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
