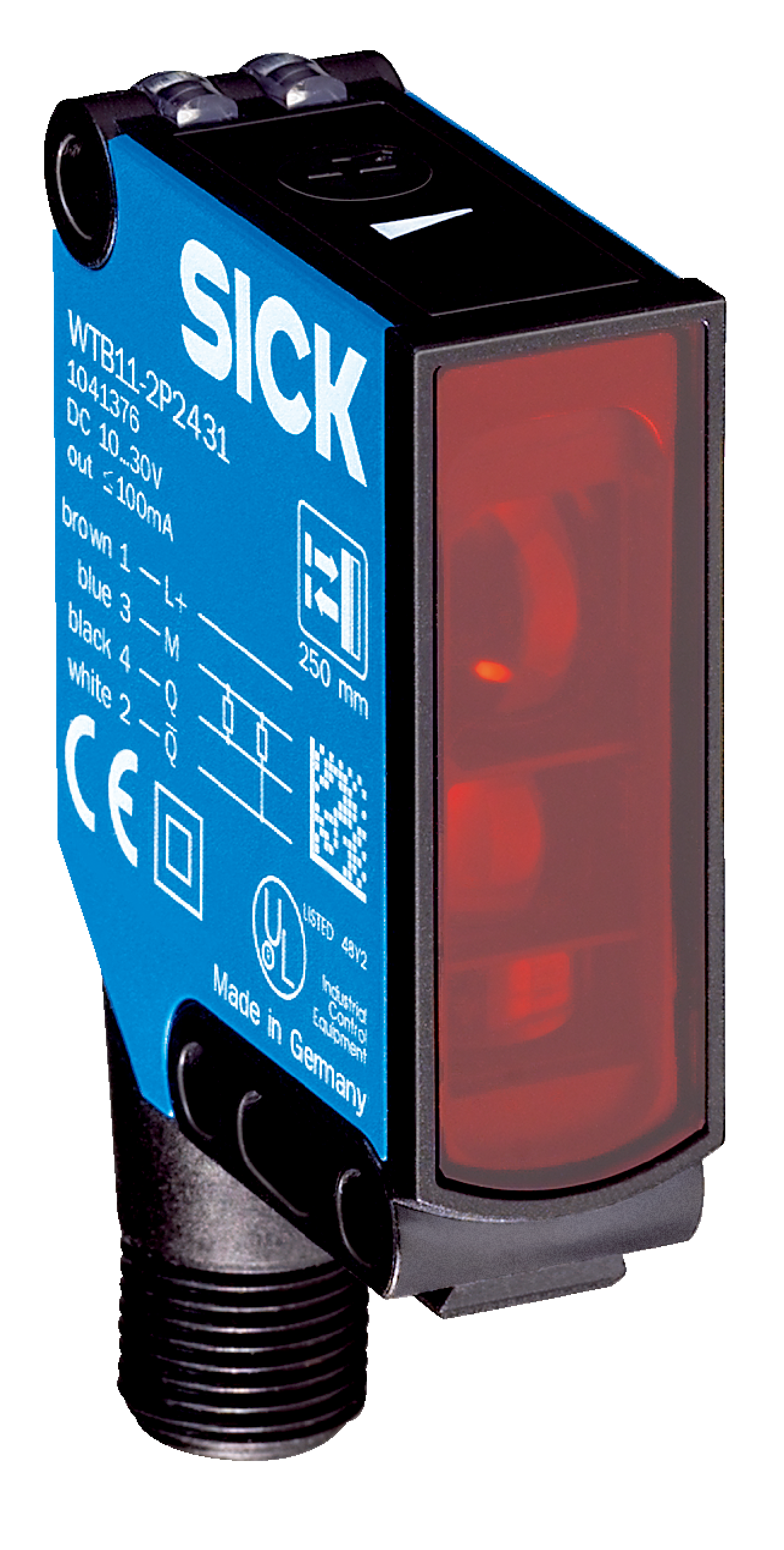

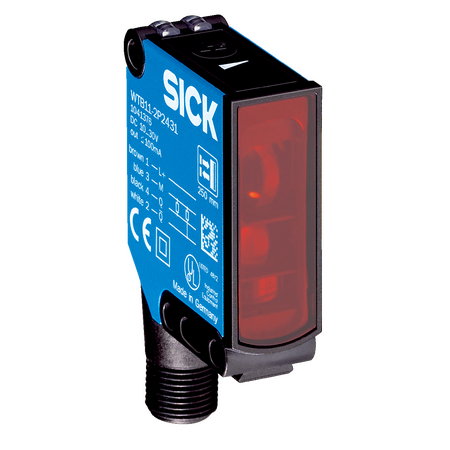

Photoelectric Proximity Sensor WTB11-2P2431 | Background Suppression | 20 mm to 350 mm Sensing Range | IP66, IP67, IP69K Rated | by SICK
The WTB11-2P2431 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 350 mm and background suppression technology. With a robust IP66, IP67, and IP69K rating, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, WTB11 Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 350 mm
- Light source: LED, visible red light at 640 nm wavelength
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, C, D
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Weight: 120 g
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 350 mm
- LED light source with 640 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 200 Hz
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -30°C to +60°C
- Plastic ABS housing and PMMA optics material
- Male connector M12, 4-pin connection type
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB11-2P2431 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
