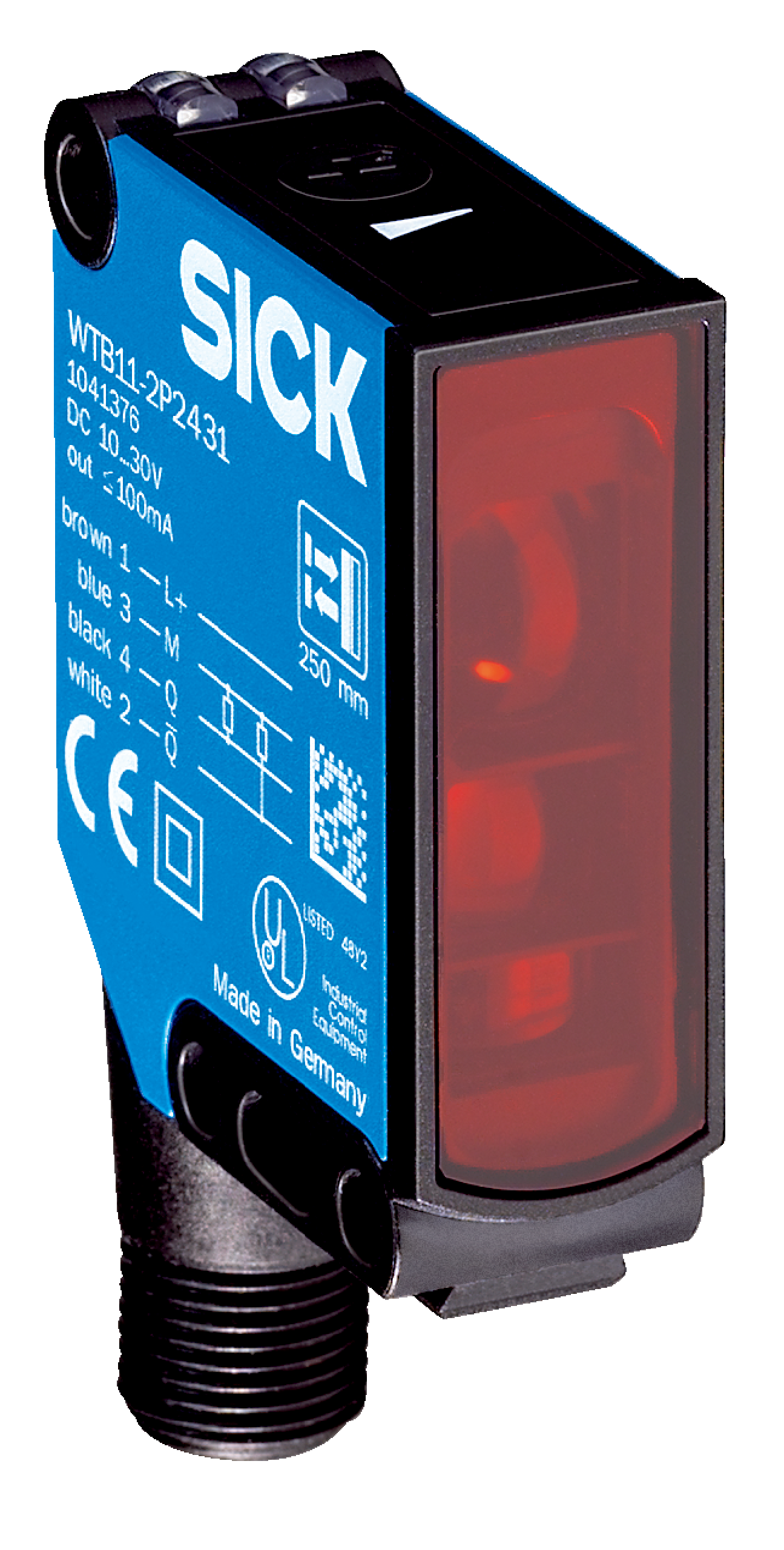

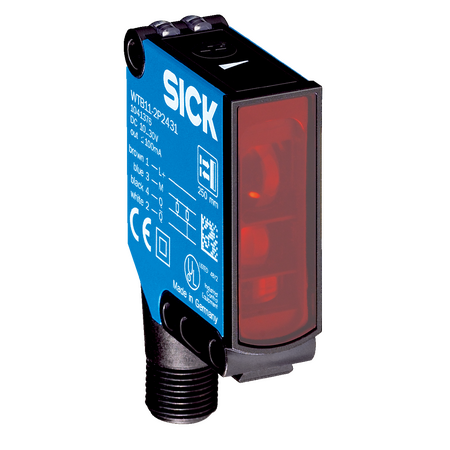

Photoelectric Proximity Sensor WTB11-2P2461 | Background Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WTB11-2P2461 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a fast response time of ≤ 2.5 ms. With an IP66/IP67/IP69K rated enclosure, it ensures robust protection in harsh environments, making it ideal for object detection in material handling, packaging systems, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, WTB11 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Light spot size: Ø 6 mm at 200 mm distance
- Wave length: 660 nm
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 30 mm to 800 mm, max up to 1100 mm
- PinPoint LED light source with 660 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 200 Hz and fast response time ≤ 2.5 ms
- IP66, IP67, and IP69K rated enclosure for robust protection
- Operating temperature range from -30 °C to +60 °C
- Complementary PNP output with light/dark switching mode
- Circuit protection and protection class III
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
- Complies with China RoHS and ECOLAB certifications ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB11-2P2461 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
