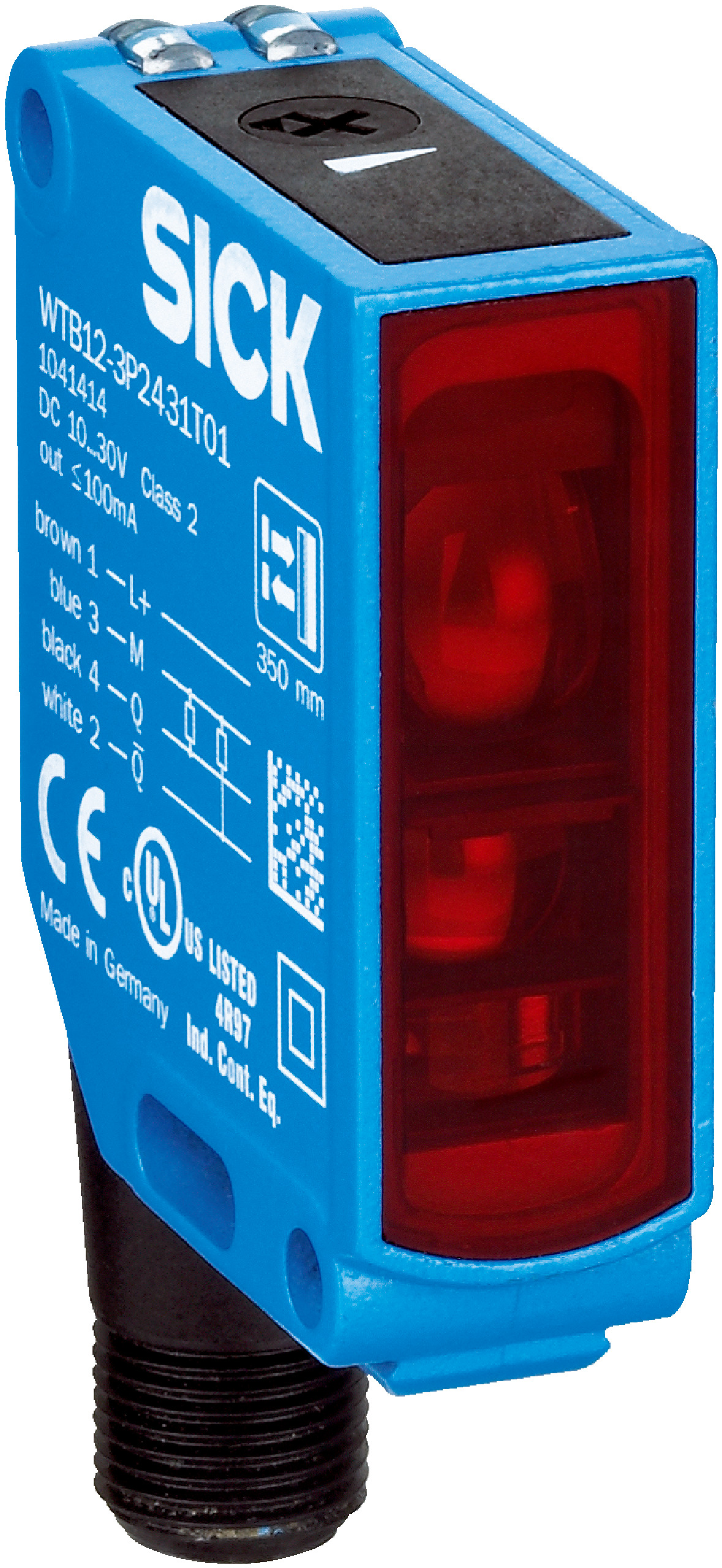

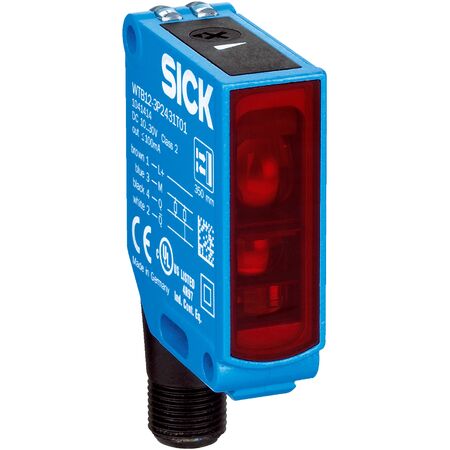

Photoelectric Proximity Sensor WTB12-3P2411T01 | 20mm to 600mm Sensing Range | IP66, IP67, IP69K Rated | by SICK
The WTB12-3P2411T01 photoelectric proximity sensor is designed for industrial automation, featuring a sensing range from 20 mm to 600 mm and an infrared LED light source. With a robust IP66, IP67, and IP69K enclosure rating, it excels in hygienic and washdown zones, ensuring reliable performance in harsh environments. Ideal for machine safety and process control, this sensor offers light/dark switching with a high switching frequency of 1,500 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB12-3P2411T01 | 20mm to 600mm Sensing Range | IP66, IP67, IP69K Rated | by SICK
Brand: SICK
SKU: 1041425
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 600 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 6 mm at 200 mm distance
- Adjustment: Potentiometer, 5 turns
- Output type: PNP digital output, light/dark switching
- Max output current: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 55 mA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Housing: Metal zinc diecast with PTFE coating
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 600 mm
- Infrared LED light source with 850 nm wavelength
- Teflon coated housing for durability in harsh environments
- Light/dark switching with PNP digital output
- High switching frequency of 1,500 Hz
- Protection class III with IP66, IP67, and IP69K enclosure ratings
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal zinc diecast housing with PTFE coating extends product life reducing waste
- Low power consumption of 55 mA supports energy-efficient operation
- Certified with China-RoHS and ECOLAB for environmental safety compliance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB12-3P2411T01 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
