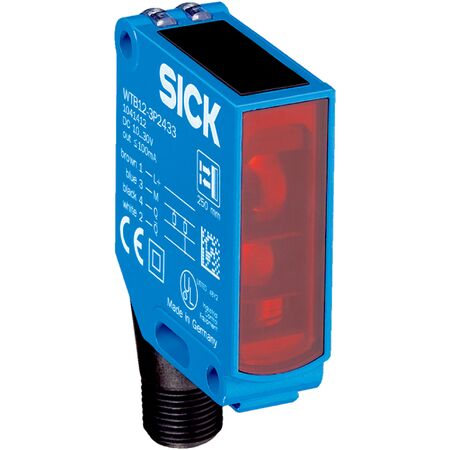

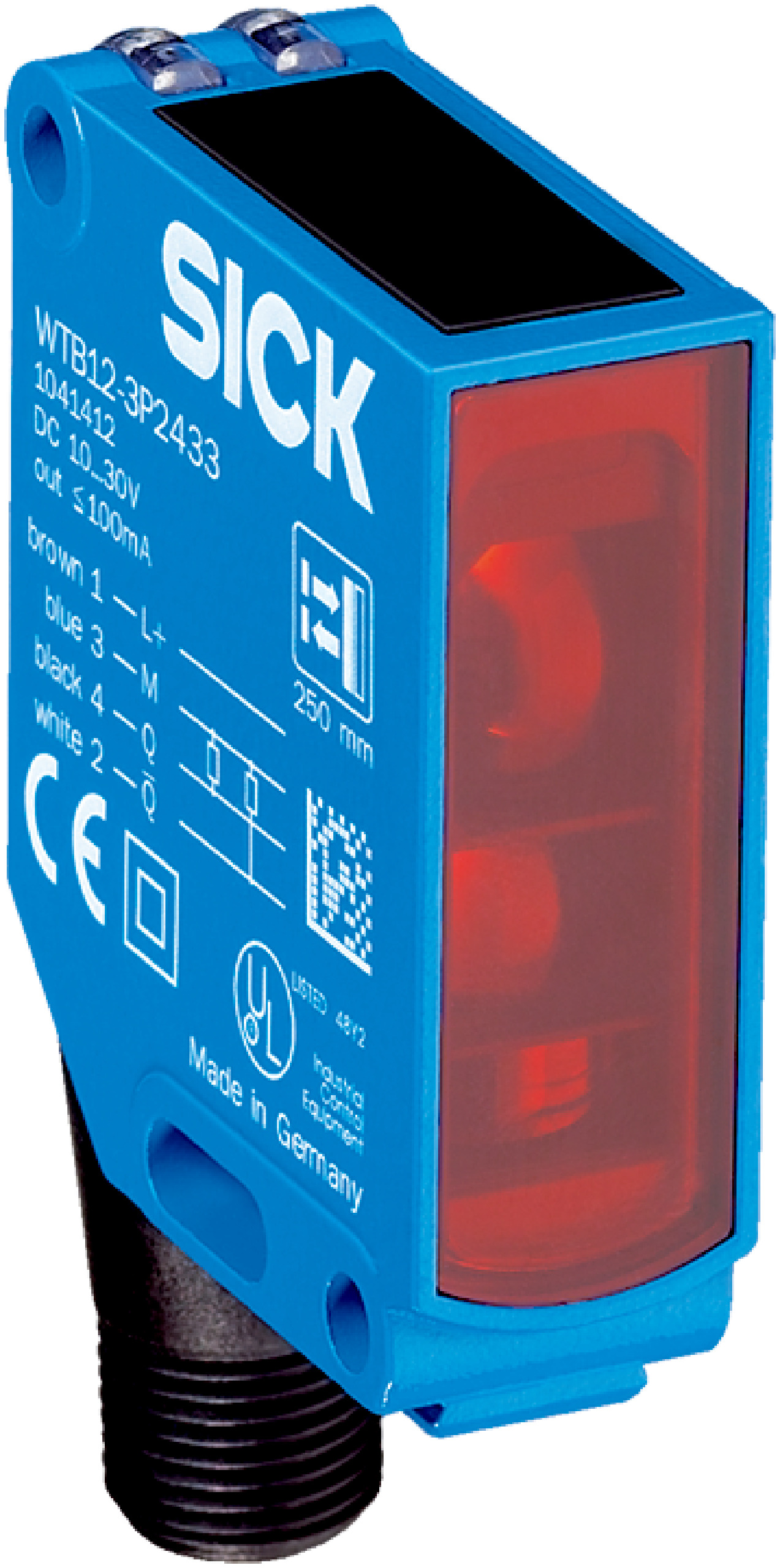

Photoelectric Proximity Sensor WTB12-3P2460S04 | Background Suppression | IP66/IP67/IP69K Rated | 15mm to 300mm Sensing Range | by SICK
The WTB12-3P2460S04 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 15mm to 300mm and background suppression technology, it ensures reliable performance even in challenging environments. Featuring a robust metal housing and IP66/IP67/IP69K protection ratings, this sensor is perfect for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 15 mm to 300 mm (preset)
- Light source: PinPoint LED, visible red light, wavelength 850 nm
- Switching output: PNP, complementary, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 55 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Housing material: Metal with plastic PMMA front screen
- Connection: M12 male connector, 4-pin, A-coding
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.2 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range preset to 300 mm for objects with 90% reflectivity
- PinPoint LED visible red light with 7 mm light spot size at 300 mm
- High switching frequency of 1,500 Hz
- Robust metal housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -40 °C to +60 °C
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB12-3P2460S04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
