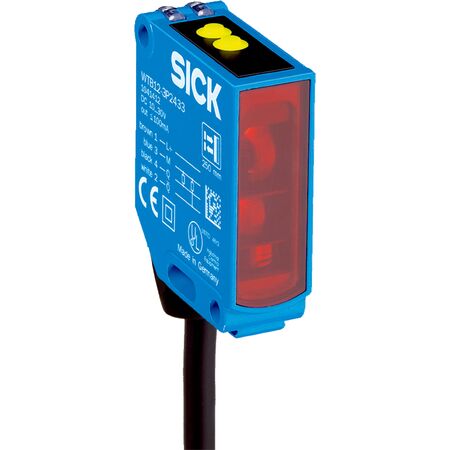

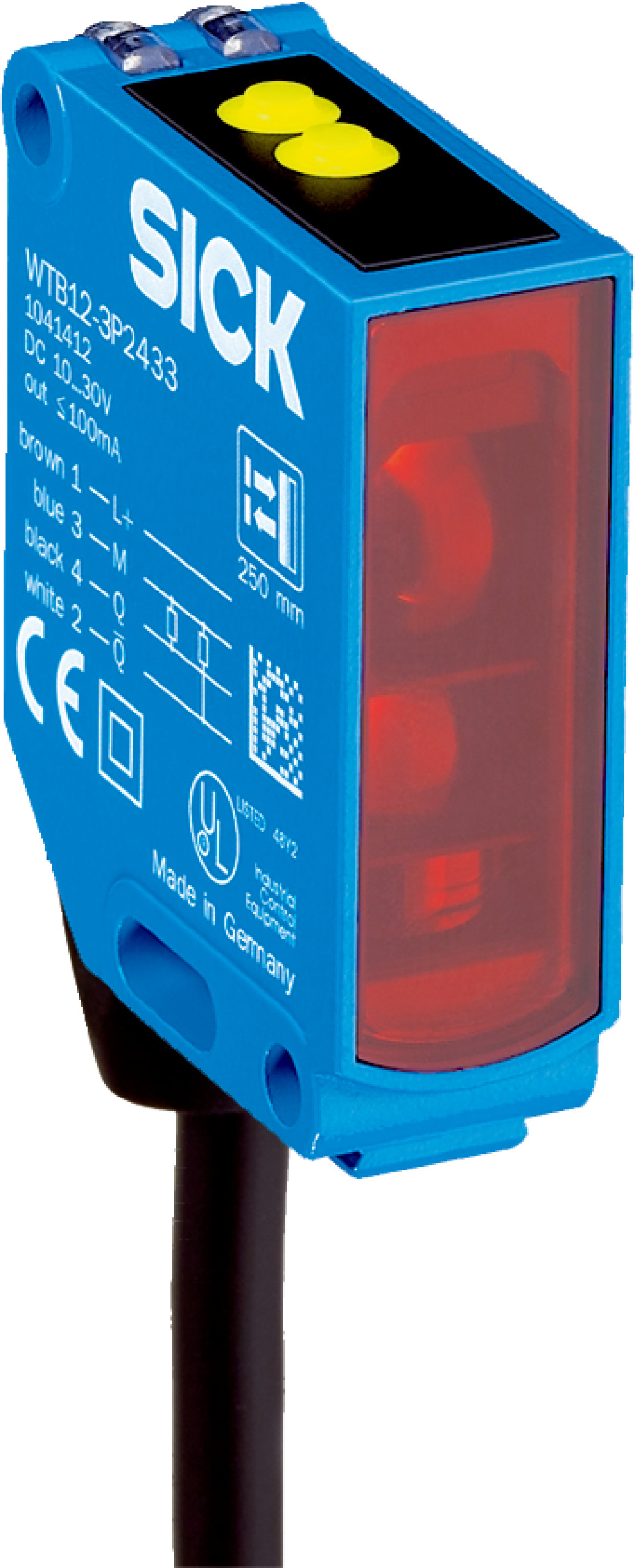

Photoelectric Proximity Sensor WTB12-3P3433 | 20 mm to 350 mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTB12-3P3433 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 350 mm and a visible red LED light source with a 640 nm wavelength. With robust IP66 and IP67 protection ratings, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 350 mm
- Light source: LED, visible red light
- Light spot size: Ø 6 mm at 200 mm distance
- Wavelength: 640 nm
- Adjustment: Double teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 45 mA
- Protection class: III
- Output type: PNP, light/dark switching
- Signal voltage PNP HIGH/LOW: > Uv - 2.5 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Housing material: Metal
- Front screen material: Plastic, PMMA
- Connection: Cable with M12 male connector, 4-pin, 270 mm
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 350 mm
- Visible red LED light source with 640 nm wavelength
- Double teach-in button for easy adjustment
- High switching frequency of 1,500 Hz
- Robust metal housing with IP66 and IP67 protection ratings
- Cable with M12 male connector, 4-pin, 270 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB12-3P3433 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
