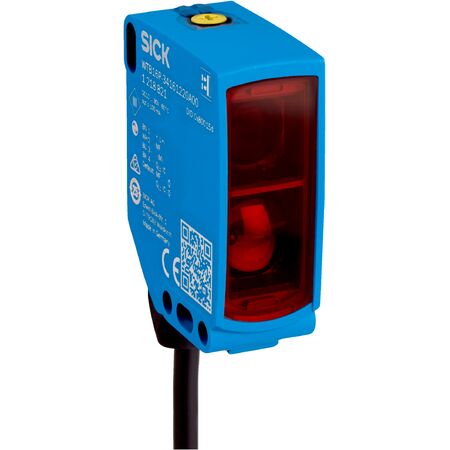

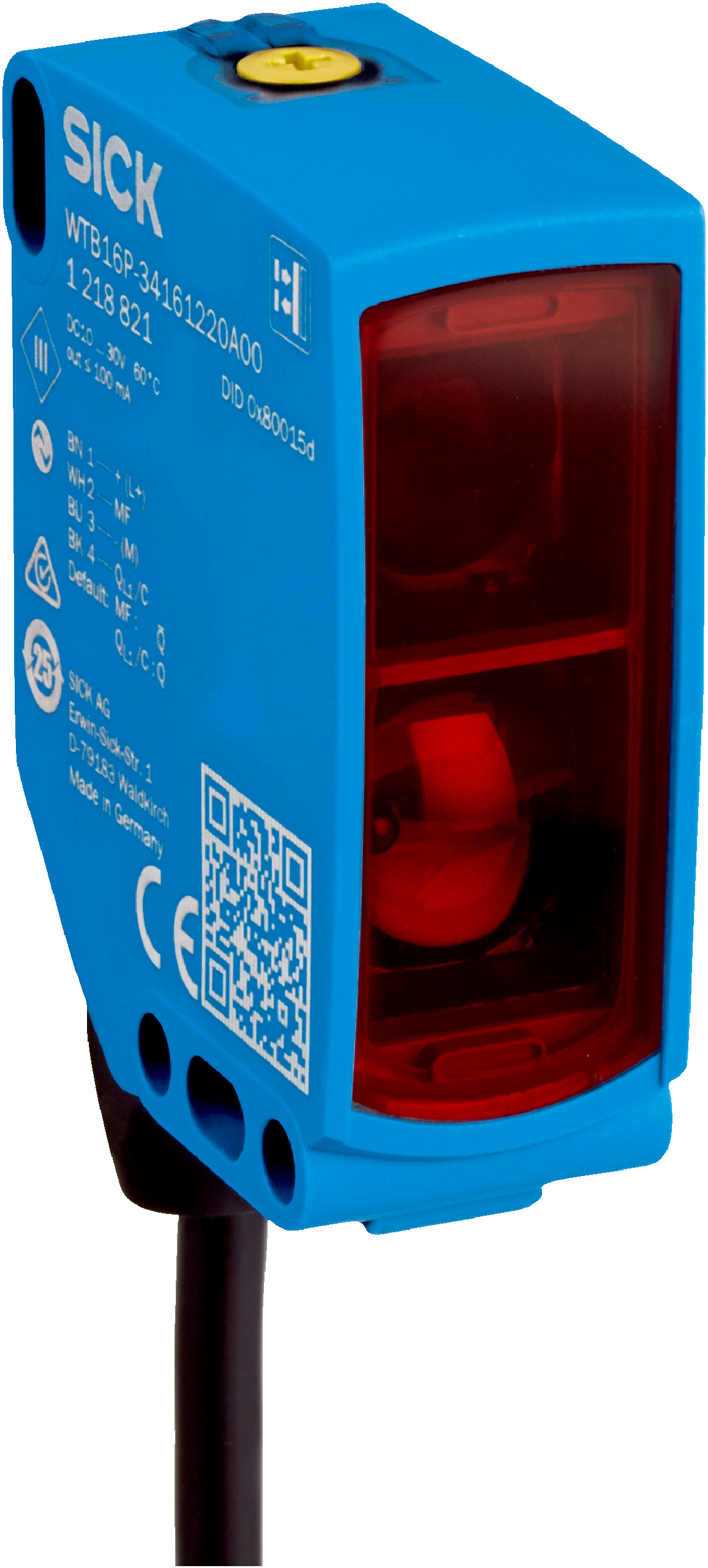

Photoelectric Proximity Sensor WTB16I-1H161120A00 | Adjustable Sensing Range 100-1500mm | IP66/IP67/IP69 Rated | by SICK
The WTB16I-1H161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 100 mm to 1500 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Featuring a robust IP66/IP67/IP69 rated housing, this sensor is perfect for material handling, quality control, and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Recommended sensing range for best performance: 100 mm to 600 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Digital outputs: 2 complementary push-pull PNP/NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Cable: 4-wire, 2 m length, PVC, Ø 4.8 mm
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High protection rating: IP66, IP67, IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time ≤ 500 µs and switching frequency up to 1000 Hz
- Complementary push-pull PNP/NPN outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and presence detection
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-1H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
