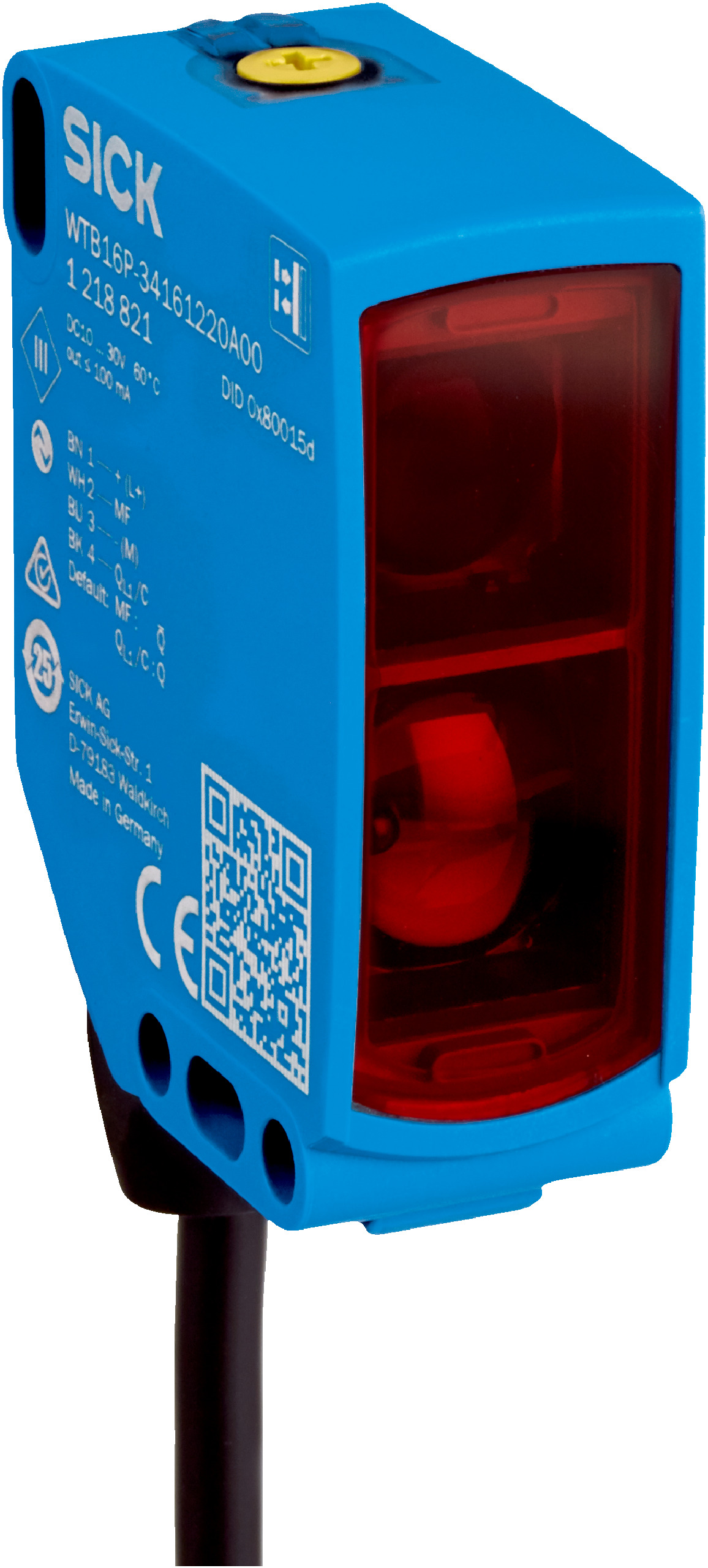

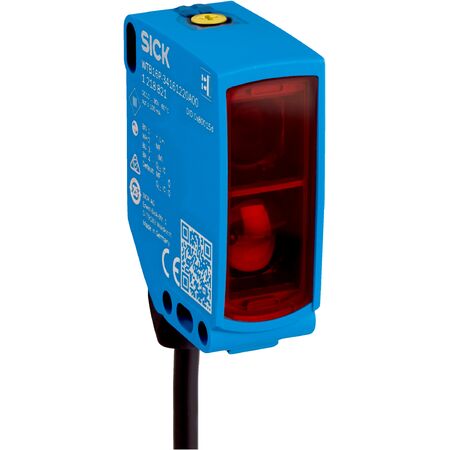

Photoelectric Proximity Sensor WTB16I-1H162120A00 | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTB16I-1H162120A00 photoelectric proximity sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1500 mm and an infrared LED light source. With a robust IP66/IP67/IP69 rating, it ensures reliable performance in harsh environments, making it ideal for object detection in manufacturing, material handling, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Recommended sensing range for best performance: 100 mm to 600 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 12 mm at 800 mm distance
- Maximum beam dispersion: < +/- 1.0° at 23 °C
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC, Ø 4.8 mm
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor configuration and Smart Task functions
- High protection rating IP66, IP67, and IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Operating temperature range from -40 °C to +60 °C
- Fast response time ≤ 500 µs and switching frequency up to 1000 Hz
- Complementary push-pull digital outputs (PNP/NPN)
- Reverse polarity, overcurrent and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-1H162120A00 photoelectric proximity sensor is available for immediate purchase. Ideal for industrial automation and object detection applications.
