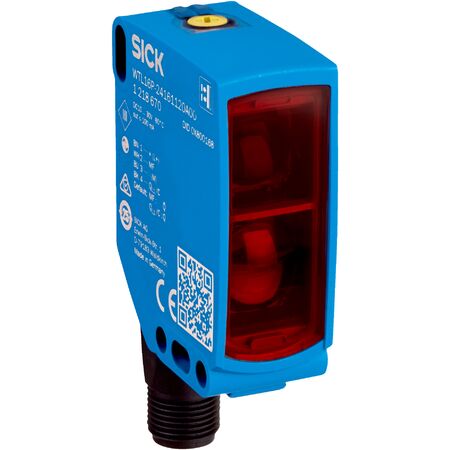

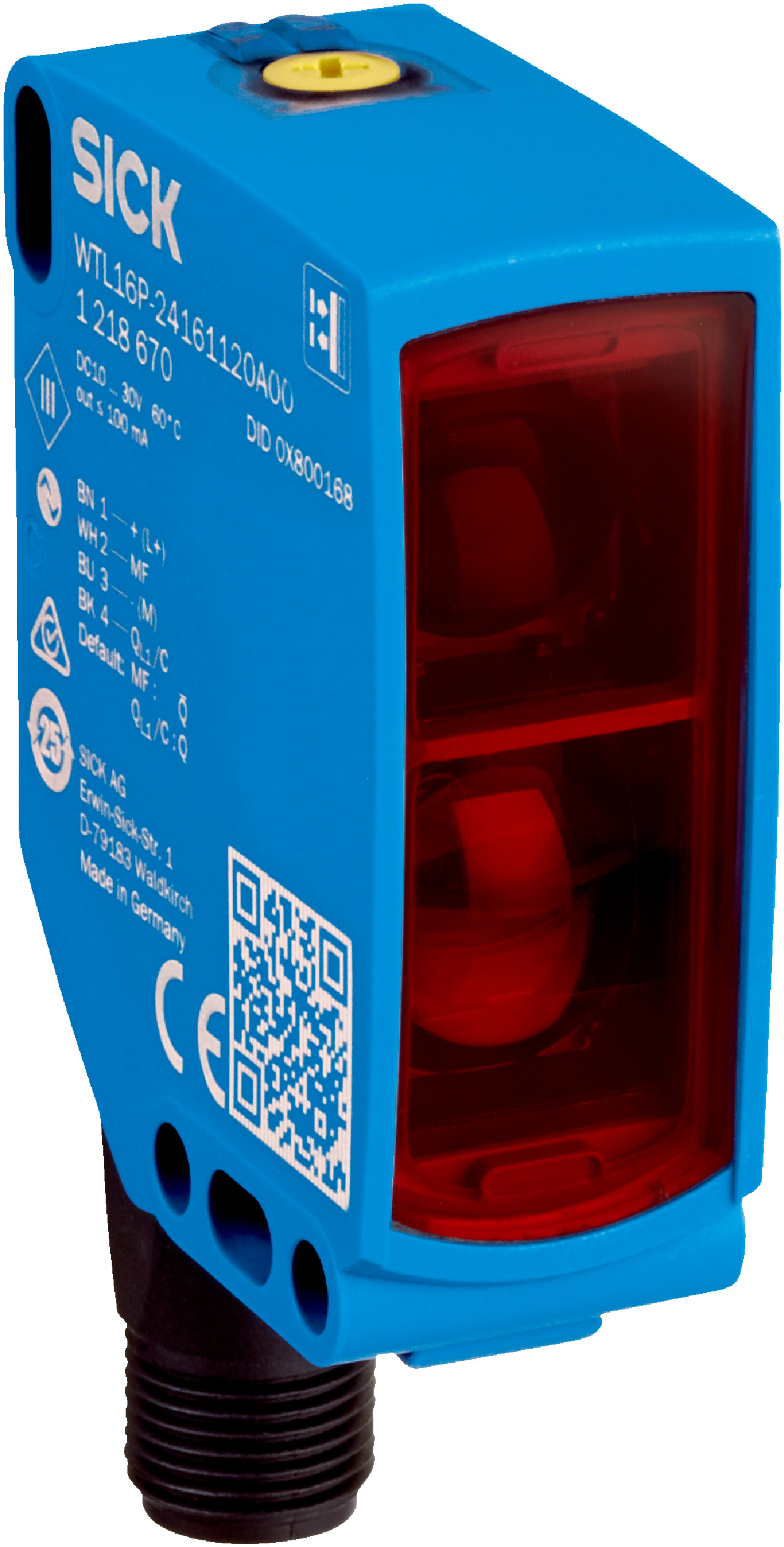

Photoelectric Proximity Sensor WTB16I-24161420A00 | Adjustable Sensing Range | IP66, IP67, IP69 Rated | by SICK
The WTB16I-24161420A00 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 10 mm to 1900 mm and a fast response time of ≤ 2.5 ms. With its robust IP66, IP67, and IP69 protection ratings, this sensor is perfect for object detection in harsh environments, ensuring reliable performance in material handling, quality control, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1900 mm adjustable
- Recommended sensing range: 100 mm to 700 mm
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL® with PMMA front screen
- Connection: Male M12, 4-pin connector
- MTTFD: 626 years
- Mission time: 20 years
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1900 mm
- Infrared LED light source with 850 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor configuration and Smart Task functions
- High protection rating: IP66, IP67, IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time of ≤ 2.5 ms and switching frequency of 200 Hz
- Dual complementary push-pull digital outputs (PNP/NPN)
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and process monitoring
- Robotics and factory automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-24161420A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
