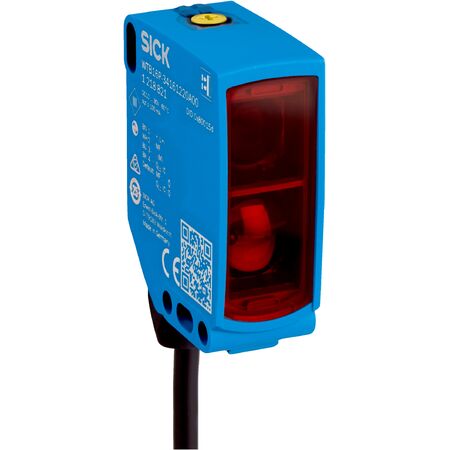

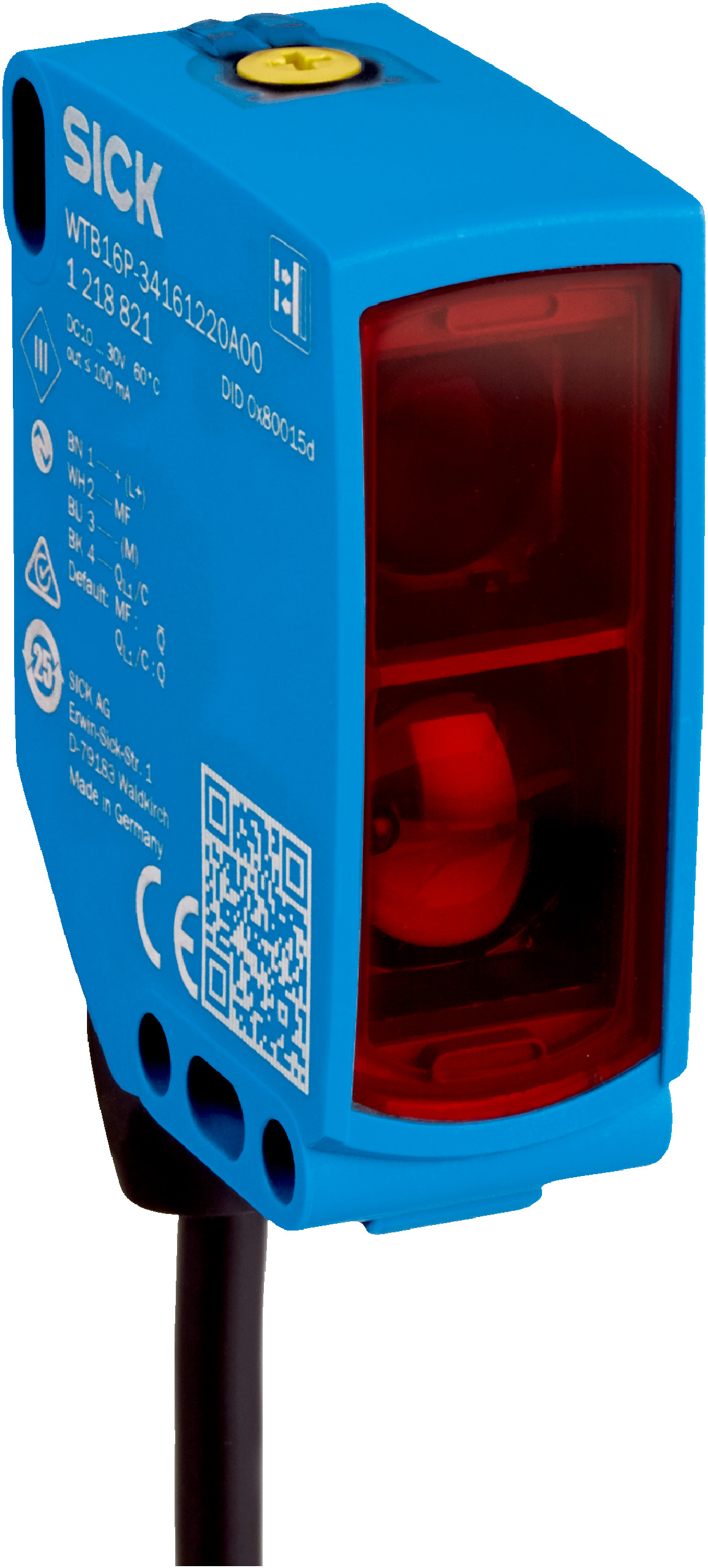

Photoelectric Proximity Sensor WTB16I-6H161120A00 | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTB16I-6H161120A00 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1500 mm and a fast response time of ≤ 500 µs. With its robust IP66/IP67/IP69 rated housing and dual complementary push-pull outputs, this sensor is perfect for object detection in material handling, packaging, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Cable: 4-wire, 5 m length, PVC, Ø 4.8 mm
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor configuration and Smart Task functions
- High protection rating IP66, IP67, and IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Dual complementary push-pull digital outputs (PNP/NPN)
- Fast response time ≤ 500 µs and switching frequency up to 1000 Hz
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant
- Certified with multiple international standards including cULus and ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Robotics and factory automation
- Quality control and presence detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-6H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
