Photoelectric Proximity Sensor WTB16I-84161120A00 | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK

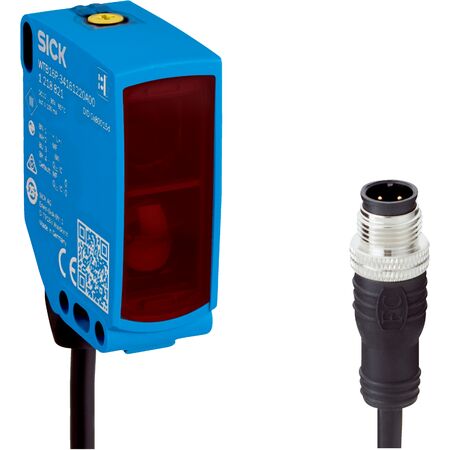

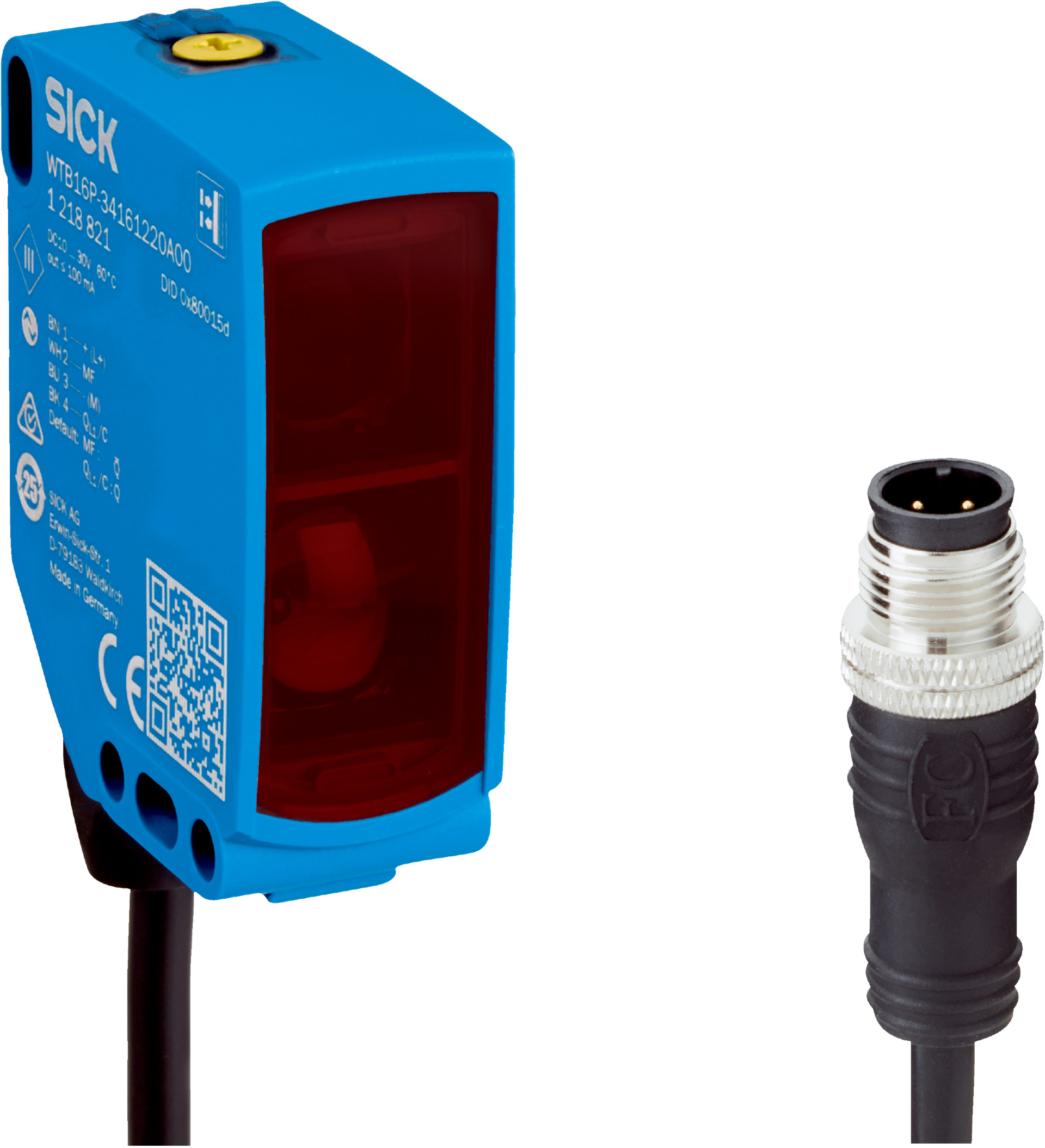

The WTB16I-84161120A00 photoelectric proximity sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1500 mm and a robust IP66/IP67/IP69 rated housing. With an infrared LED light source and easy teach-turn adjustment, it's perfect for object detection in material handling, packaging machinery, and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm
- BluePilot teach-turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High protection rating: IP66, IP67, IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Dual complementary push-pull digital outputs (PNP/NPN)
- Long LED service life of 100,000 hours at 25 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor setup and electrical safety.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB16I-84161120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
