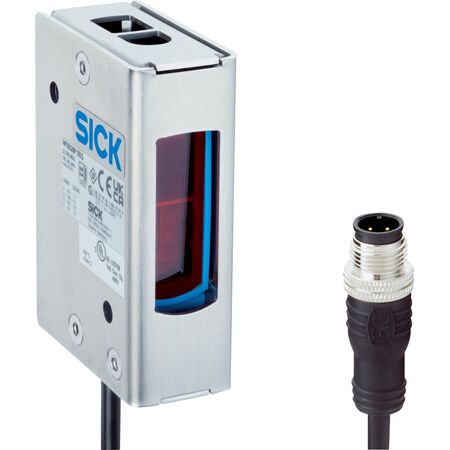

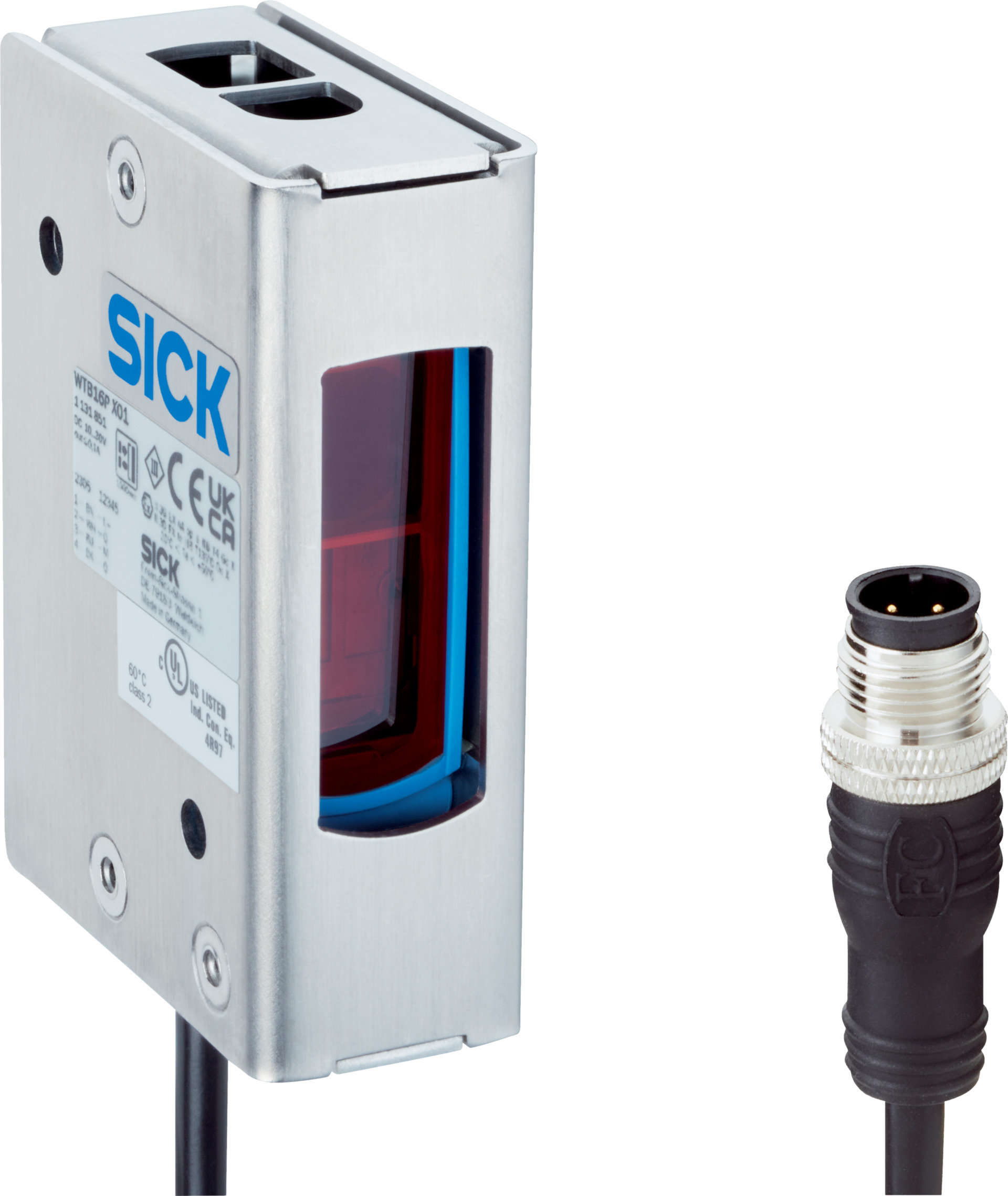

Photoelectric Proximity Sensor WTB16I-X02 | Adjustable Sensing Range | IP66 & IP67 Rated | by SICK
The WTB16I-X02 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 10 mm to 1500 mm and an infrared LED light source. With high protection ratings of IP66 and IP67, this sensor is perfect for harsh environments and explosive areas, ensuring reliable object detection and background suppression in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1500 mm adjustable
- Recommended sensing range: 100 mm to 600 mm
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Housing material: Plastic VISTAL® with stainless steel protective housing
- Cable: PVC, 4-pin M12 male connector, 318 mm length
- Dimensions (H x L x W): 82mm x 55mm x 27mm
- Weight: 0.25 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- BluePilot teach-turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High protection rating IP66 and IP67 for harsh environments
- Robust plastic housing with stainless steel protective housing
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours
- Certified for use in explosive areas (ATEX II 3G and 3D)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, especially for use in explosive environments.
Applications
- Industrial automation for object detection
- Explosive areas requiring certified sensors
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient infrared LED light source minimizes power consumption
- Durable construction reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB16I-X02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area applications.
