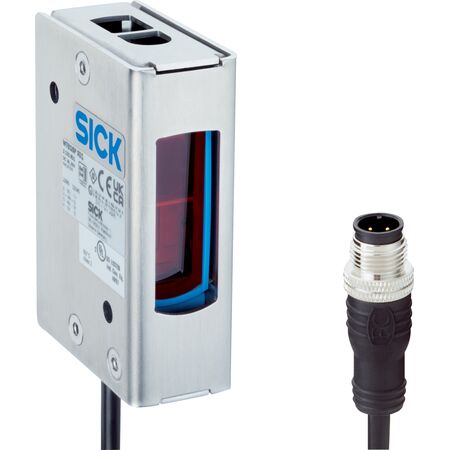

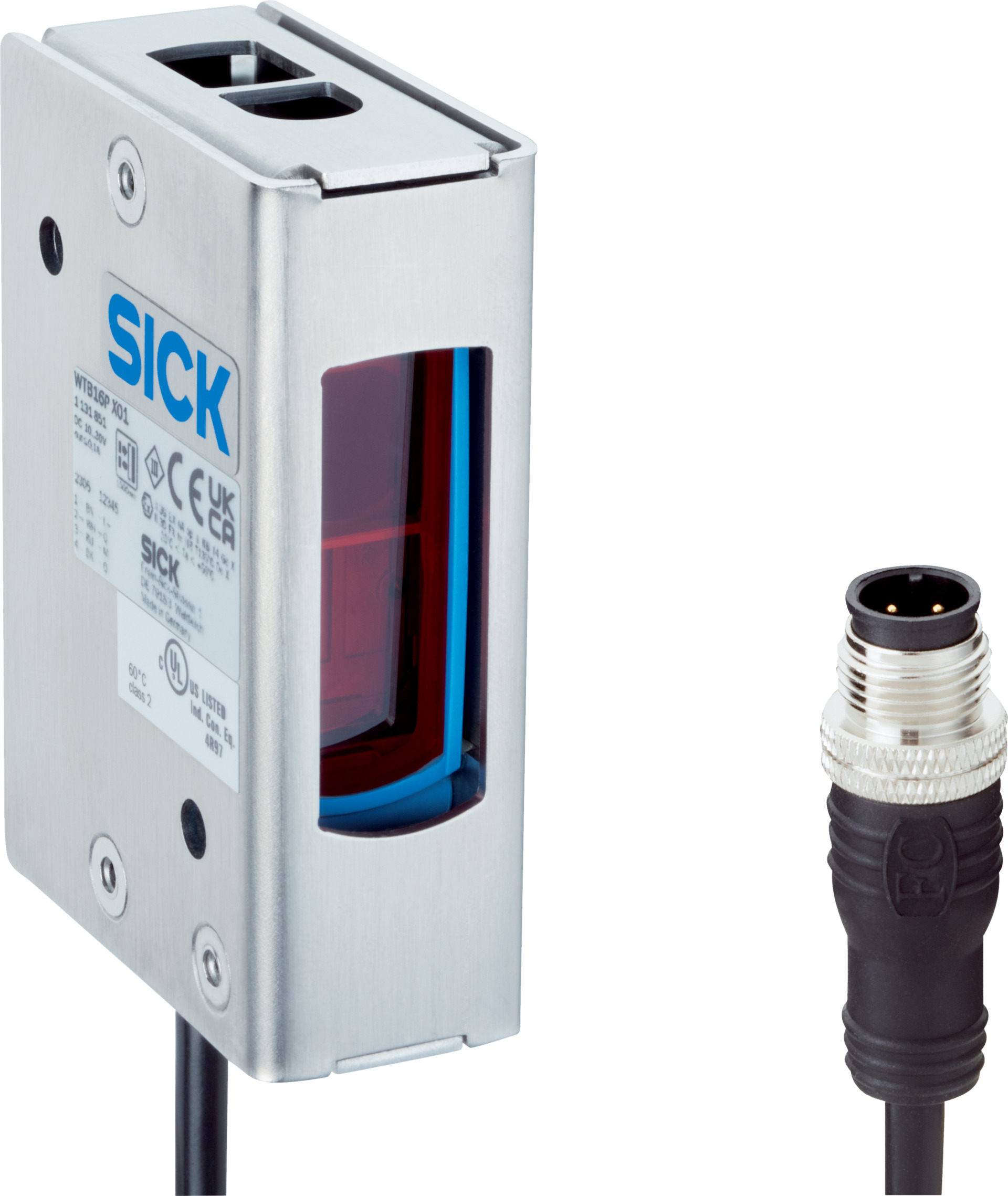

Photoelectric Proximity Sensor WTB16P-X01 | Adjustable 100-1000mm Range | IP66/IP67 Rated | by SICK
The WTB16P-X01 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1000 mm and a high switching frequency of up to 1000 Hz. With its robust IP66/IP67 rated housing and IO-Link interface, this sensor is perfect for machine safety and process control, ensuring reliable performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 1000 mm, adjustable switching threshold 100 mm to 1000 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Switching mode: Light/dark switching, push-pull PNP/NPN outputs
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Response time: ≤ 500 µs
- Switching frequency: up to 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Housing material: Plastic VISTAL®, protective housing stainless steel V2A
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Dimensions (H x L x W): 82mm x 55mm x 27mm
- Weight: 0.25 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable switching threshold from 100 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust plastic housing with stainless steel protective housing
- IP66 and IP67 rated for dust and water protection
- Suitable for explosive areas (ATEX II 3G and 3D certified)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Explosive area sensing applications
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB16P-X01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
