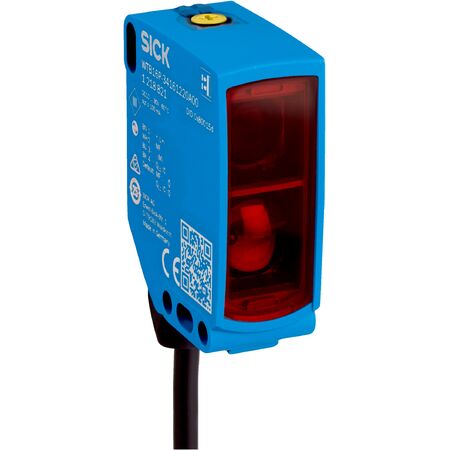

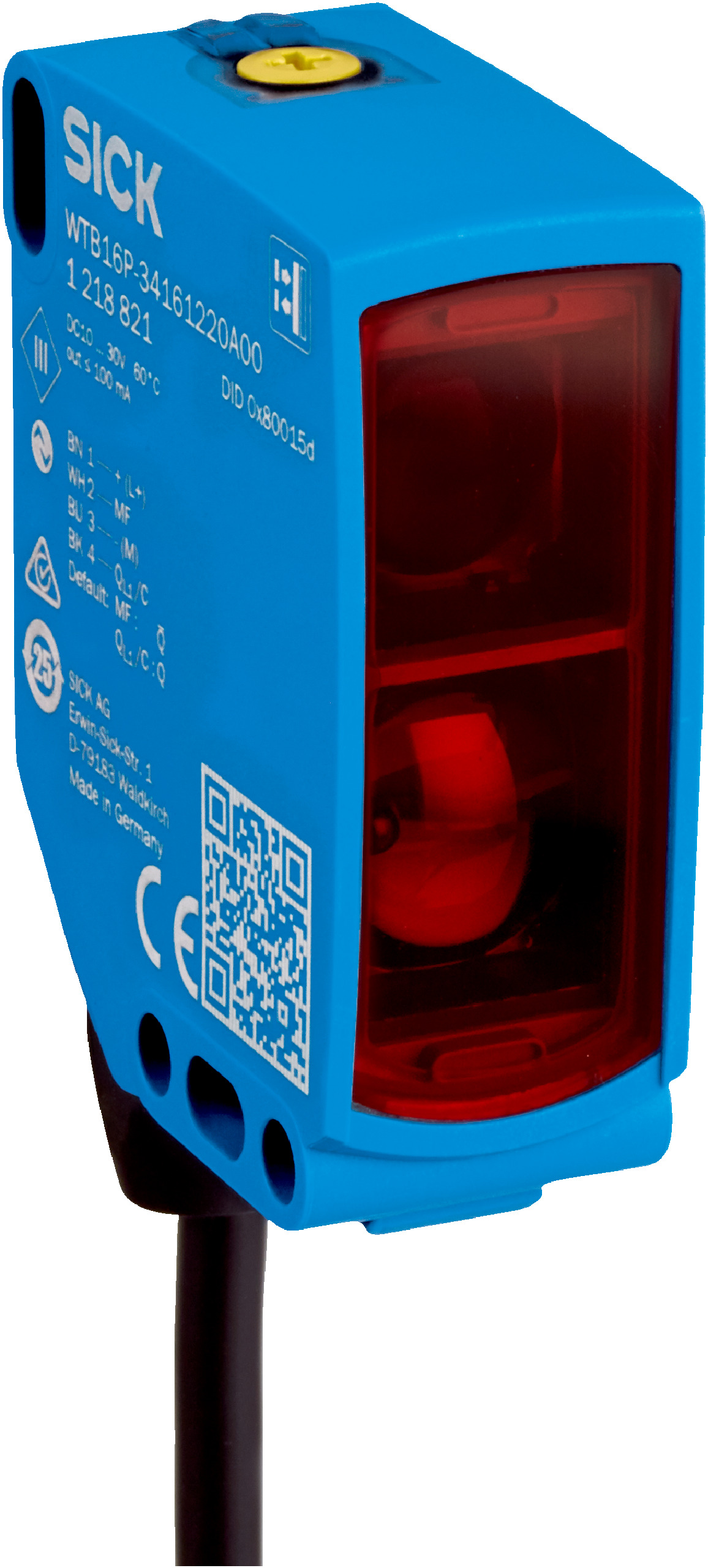

Photoelectric Proximity Sensor WTB16P-6H161120A00 | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WTB16P-6H161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 100 mm to 1000 mm and a fast response time of ≤ 500 µs, it ensures reliable performance. Its robust IP66/IP67/IP69 rated housing and PinPoint LED light source make it ideal for challenging environments, providing durability and efficiency for material handling and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1000 mm adjustable, recommended 100 mm to 400 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: 4-wire cable, 5 m length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- Maximum tightening torque of fixing screws: 1.3 Nm
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability and fast response time (≤ 500 µs)
- Dual complementary push-pull digital outputs (PNP/NPN)
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- BluePilot for easy sensing range adjustment
- Long LED service life of 100,000 hours at 25 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems and IO-Link configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and presence detection
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16P-6H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
