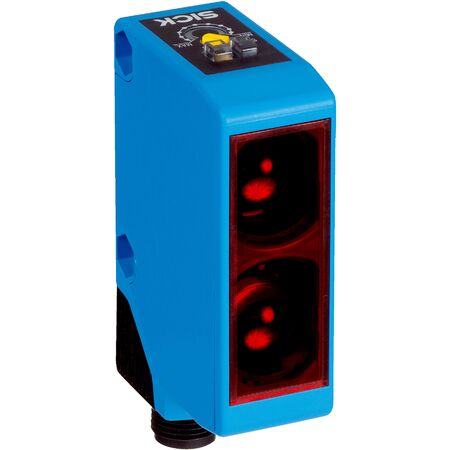

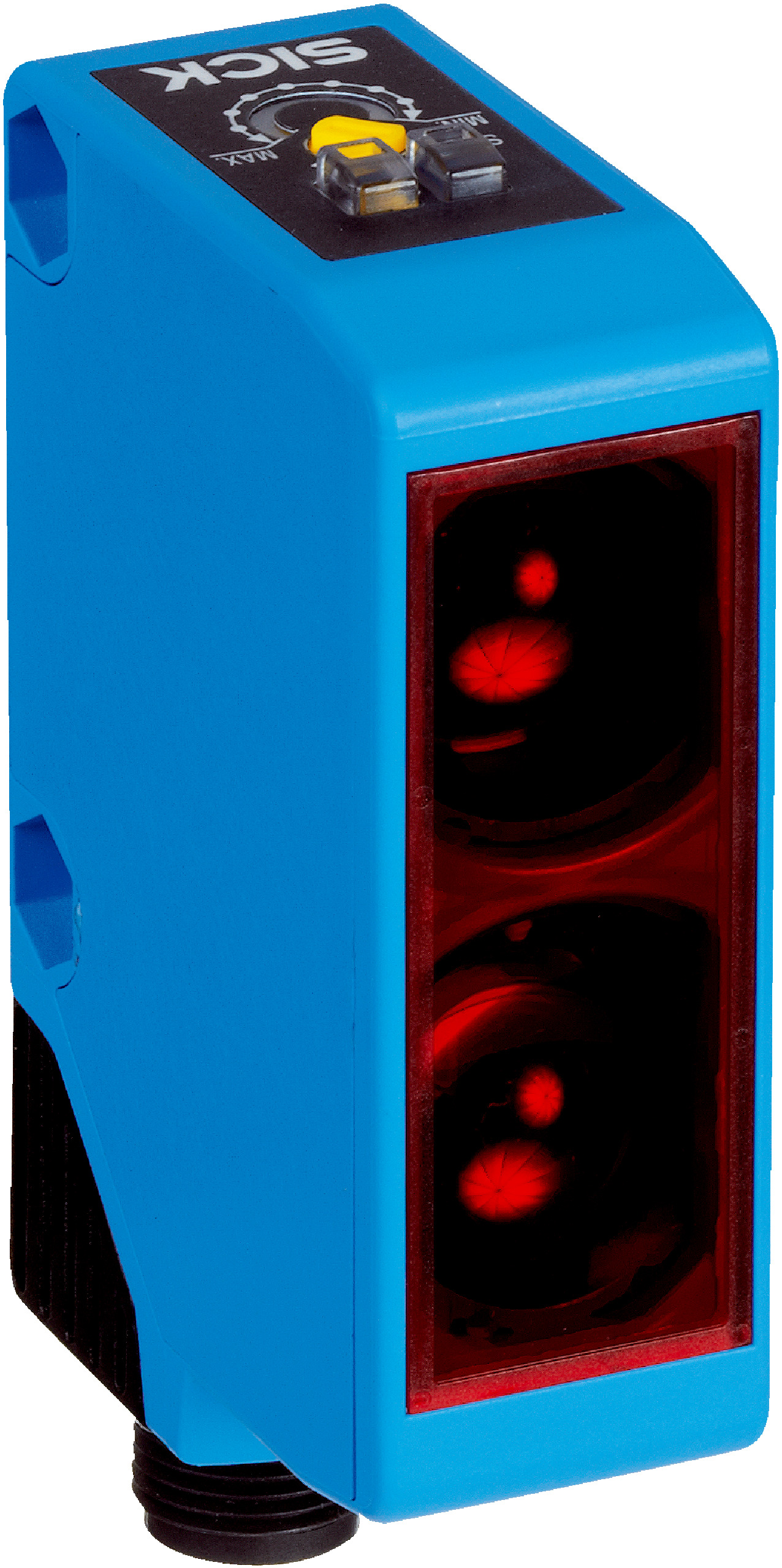

Photoelectric Proximity Sensor WTB250-2F2441 | IP67 Rated | 160 Hz Switching Frequency | Background Suppression | by SICK
The WTB250-2F2441 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 150 mm to 500 mm and a high switching frequency of 160 Hz. With an IP67 rated enclosure for dust and water protection, this robust sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light switching
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm
- Focus angle approximately 3° with light spot size Ø 30 mm at 500 mm
- Potentiometer adjustment with 2 turns for sensitivity tuning
- High switching frequency of 160 Hz and response time ≤ 3 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing and PMMA optics material
- Male connector M12, 4-pin connection type
- Circuit protection and electromagnetic compatibility compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2F2441 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
