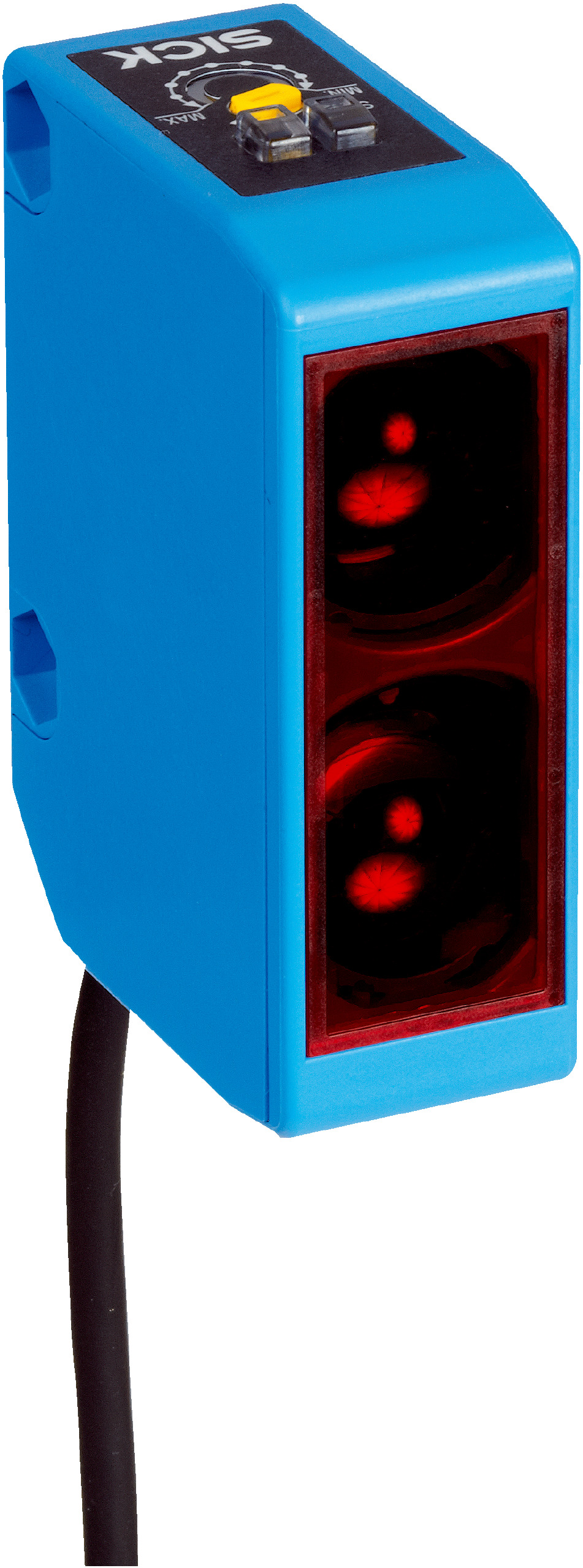

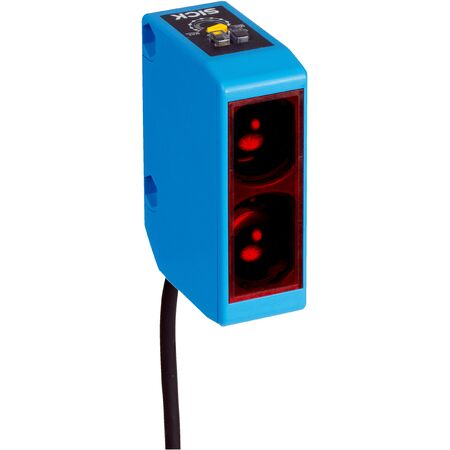

Photoelectric Proximity Sensor WTB250-2N1131 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB250-2N1131 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 100 mm to 300 mm and a fast response time of ≤ 3 ms. With its robust IP67-rated housing and selectable light/dark switching mode, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 300 mm
- Light source: Visible red LED
- Focus angle: Approx. 3°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection: 4-wire, 2 m PVC cable
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Adjustable sensing range from 100 mm to 300 mm
- Focus angle approximately 3° with light spot size Ø 30 mm at 300 mm
- Selectable light/dark switching mode via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Cable connection with 4-wire, 2 m PVC cable
- Wide ambient operating temperature range from –25 °C to +55 °C
- Includes BEF-W250 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB250-2N1131 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
