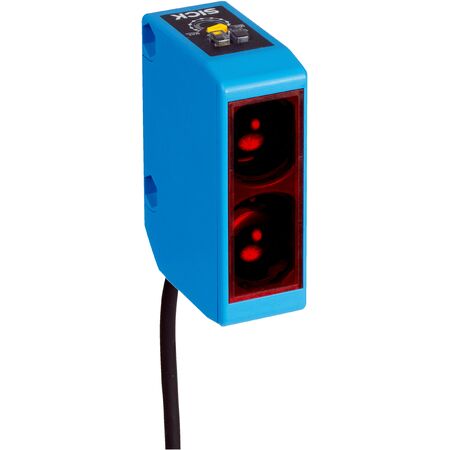

Photoelectric Proximity Sensor WTB250-2N1141 | IP67 Rated | 160 Hz Switching Frequency | Background Suppression | by SICK
The WTB250-2N1141 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 150 mm to 500 mm and a high switching frequency of 160 Hz. With its robust IP67-rated housing and selectable light/dark switching mode, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN transistor
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm
- Focus angle approximately 3° with light spot size Ø 30 mm at 500 mm
- Selectable light/dark switching mode via control cable
- High switching frequency of 160 Hz and response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Supplied with BEF-W250 mounting bracket
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2N1141 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
