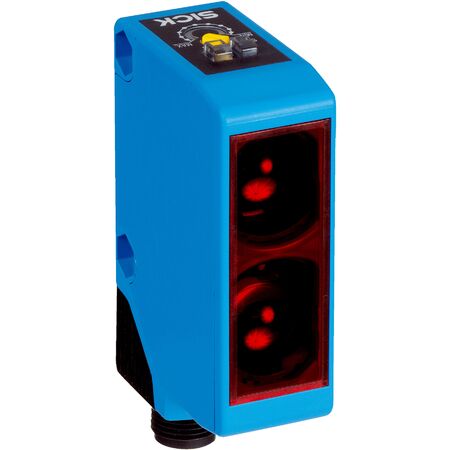

Photoelectric Proximity Sensor WTB250-2N2431 | 100mm to 300mm Sensing Range | IP67 Rated | Fast Response Time | by SICK
The WTB250-2N2431 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 100mm to 300mm and a fast response time of ≤ 3 ms. With a robust IP67-rated housing and selectable light/dark switching mode, it's perfect for manufacturing process control and material handling applications, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 300 mm
- Light source: Visible red LED
- Focus and angle of dispersion: Approx. 3°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Includes BEF-W250 mounting bracket
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with approx. 3° focus and angle of dispersion
- Sensing range from 100 mm to 300 mm
- Selectable light/dark switching mode via control cable
- Robust plastic ABS housing with IP67 enclosure rating
- Fast response time of ≤ 3 ms and switching frequency of 160 Hz
- Male M12 4-pin connector for easy connection
- Includes BEF-W250 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB250-2N2431 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
