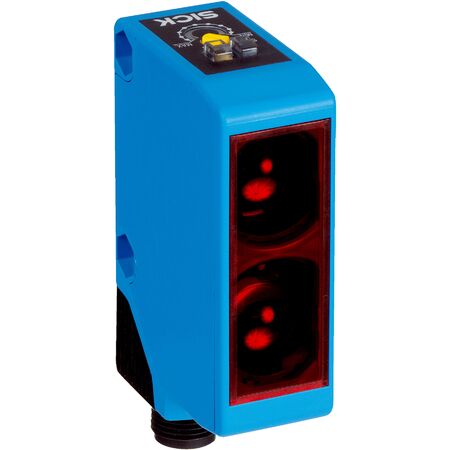

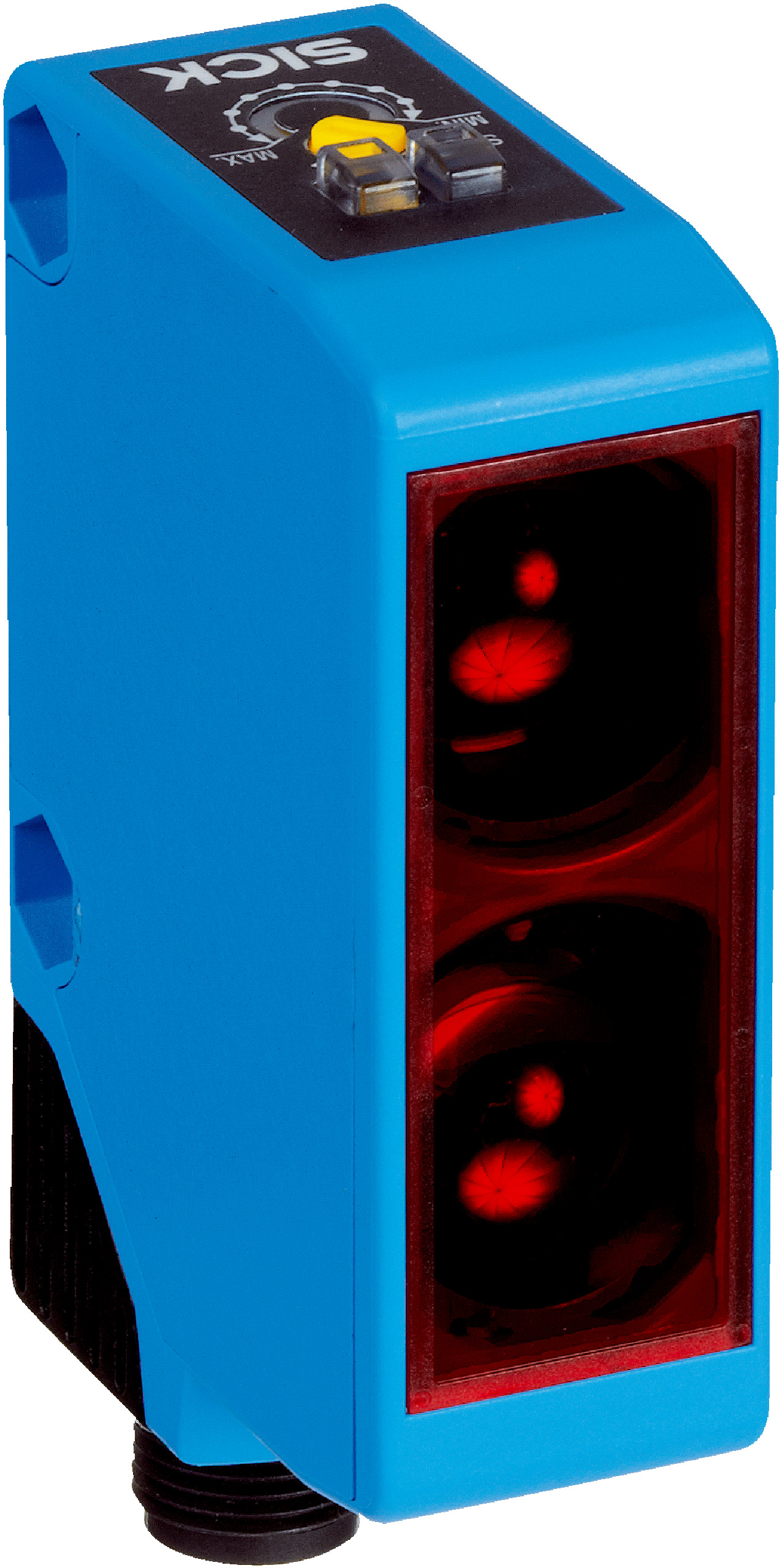

Photoelectric Proximity Sensor WTB250-2N2441 | IP67 Rated | 160 Hz Switching Frequency | Background Suppression | by SICK
The WTB250-2N2441 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 150 mm to 500 mm and a high switching frequency of 160 Hz. With its robust IP67-rated housing and selectable light/dark switching mode, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with approx. 3° focus and angle of dispersion
- Sensing range from 150 mm to 500 mm
- Selectable light/dark switching mode via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Male connector M12, 4-pin connection
- Includes BEF-W250 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB250-2N2441 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
