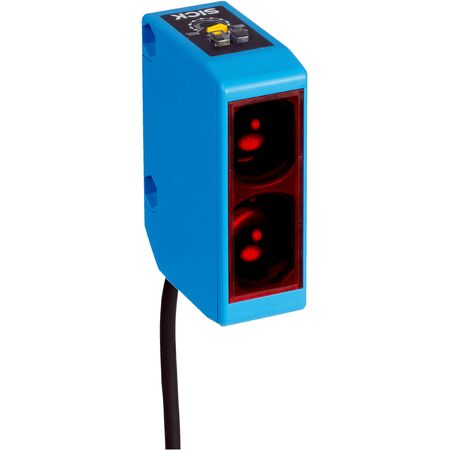

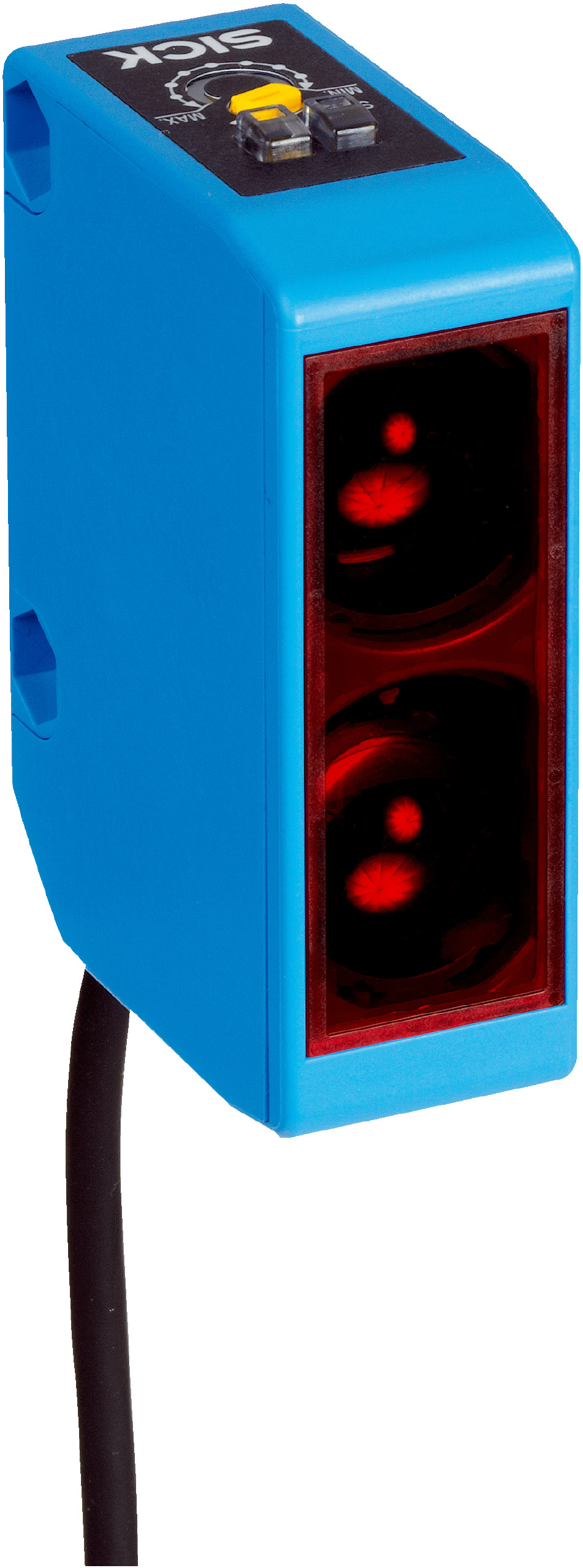

Photoelectric Proximity Sensor WTB250-2P1141 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB250-2P1141 photoelectric proximity sensor is designed for industrial automation, featuring background suppression and a robust IP67-rated housing. With a fast response time of ≤ 3 ms and a sensing range of 150 mm to 500 mm, it's perfect for object detection in manufacturing and material handling applications. Built for reliability, this sensor ensures optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm
- Focus angle approximately 3° with light spot size Ø 30 mm at 500 mm
- Selectable light/dark switching mode via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Supplied with BEF-W250 mounting bracket
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2P1141 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
