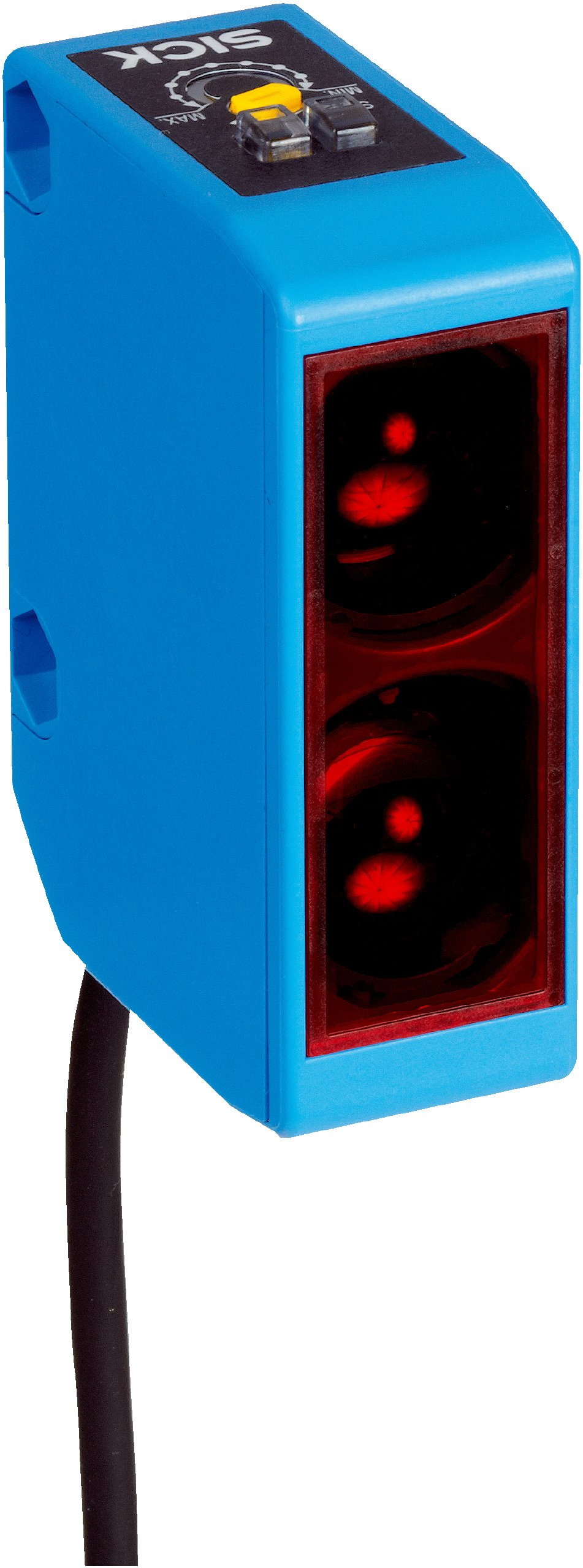

Photoelectric Proximity Sensor WTB250-2P1241 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB250-2P1241 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a robust IP67-rated housing. With a fast response time of ≤ 3 ms and a high switching frequency of 160 Hz, it's perfect for object detection in manufacturing and material handling applications. Its durable design ensures reliability in challenging environments, making it an essential tool for process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection: 4-wire cable, 5 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm
- Focus angle approximately 3° with light spot size Ø 30 mm at 500 mm
- Selectable light/dark switching mode via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Supplied with BEF-W250 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB250-2P1241 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
