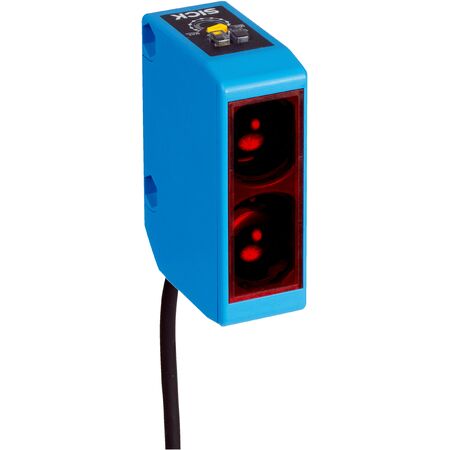

Photoelectric Proximity Sensor WTB250-2P1251 | IP67 Rated | 200mm to 1000mm Sensing Range | 160 Hz Switching Frequency | by SICK
The WTB250-2P1251 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 200mm to 1000mm and a high switching frequency of 160 Hz. With an IP67 enclosure rating and robust ABS housing, it’s perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection type: 4-wire cable, 5 m length
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with approx. 3° focus and angle of dispersion
- Sensing range from 200 mm to 1000 mm
- Light/dark switching mode selectable via control cable
- High switching frequency of 160 Hz and response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Supplied with BEF-W250 mounting bracket
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2P1251 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
