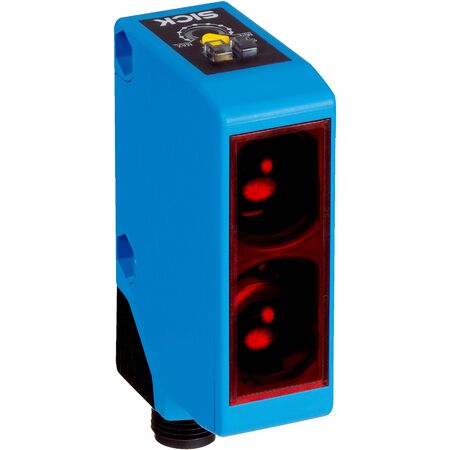

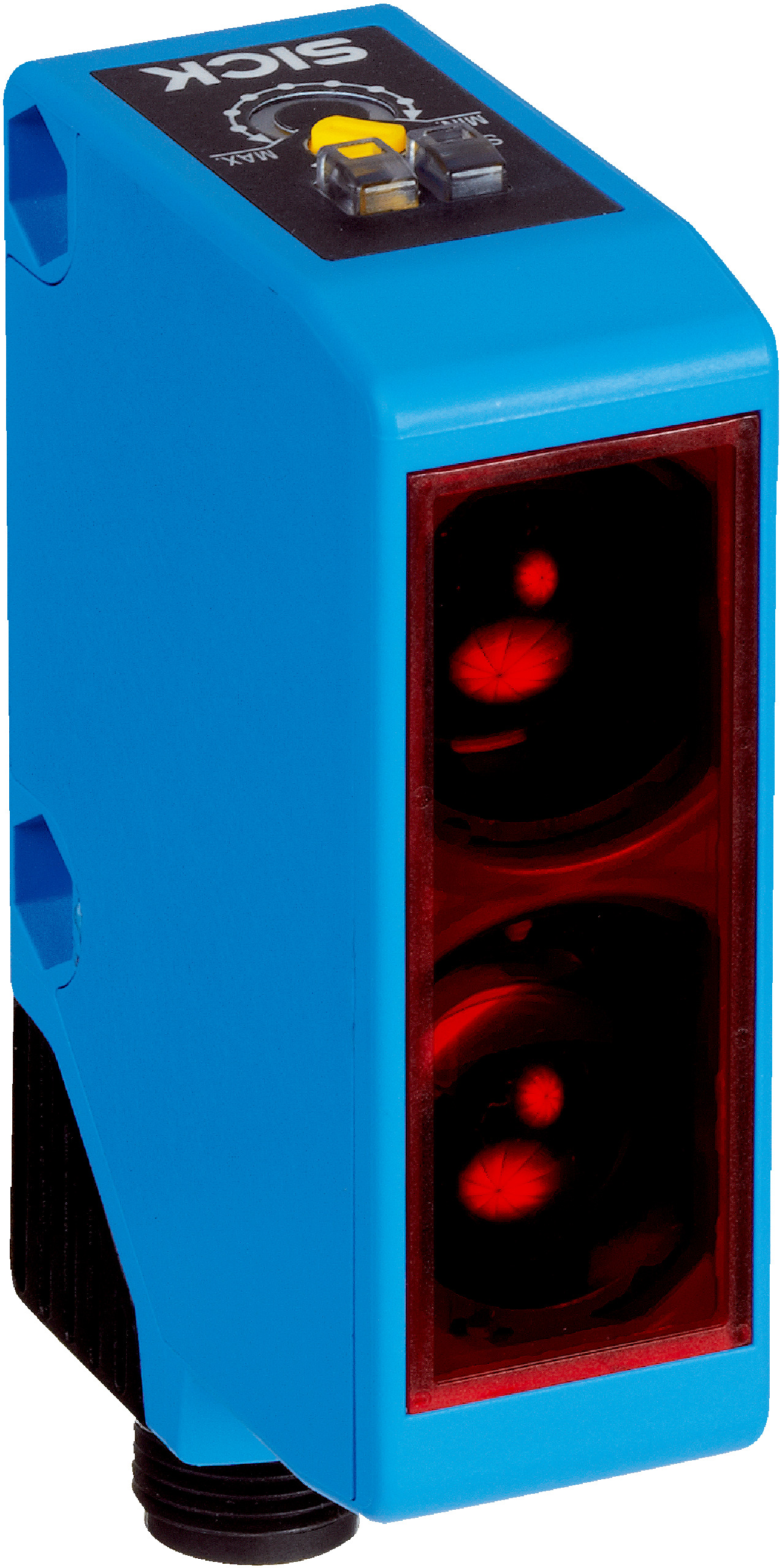

Photoelectric Proximity Sensor WTB250-2P2431 | IP67 Rated | Fast Response Time | Background Suppression | by SICK
The WTB250-2P2431 photoelectric proximity sensor is designed for industrial automation, featuring a robust IP67-rated housing and a fast response time of ≤ 3 ms. With a sensing range of 100 mm to 300 mm and selectable light/dark switching mode, it's perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Connection type: Male connector M12, 4-pin
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 100 mm to 300 mm with approx. 3° focus and angle of dispersion
- Light/dark switching mode selectable via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- Robust plastic ABS housing with IP67 enclosure rating for dust and water protection
- Male connector M12, 4-pin connection type
- Wide ambient operating temperature range from –25 °C to +55 °C
- Includes BEF-W250 mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2P2431 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
