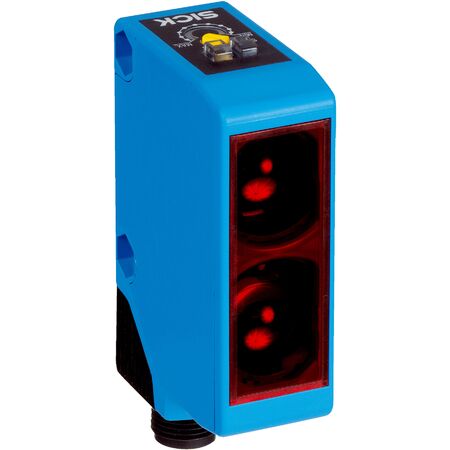

Photoelectric Proximity Sensor WTB250-2P2441 | 150mm to 500mm Sensing Range | IP67 Rated | by SICK
The WTB250-2P2441 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 150 mm to 500 mm and a fast response time of ≤ 3 ms. With its IP67 rated enclosure, this sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 150 mm to 500 mm
- Light source: Visible red LED
- Light spot size at 500 mm: Ø 30 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Safety certifications: cRUus, Photobiological safety DIN EN 62471
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm with approx. 3° focus and angle of dispersion
- Potentiometer adjustment with 2 turns for sensitivity tuning
- PNP switching output with selectable light/dark switching mode
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from –25 °C to +55 °C
- Supplied with BEF-W250 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2P2441 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
