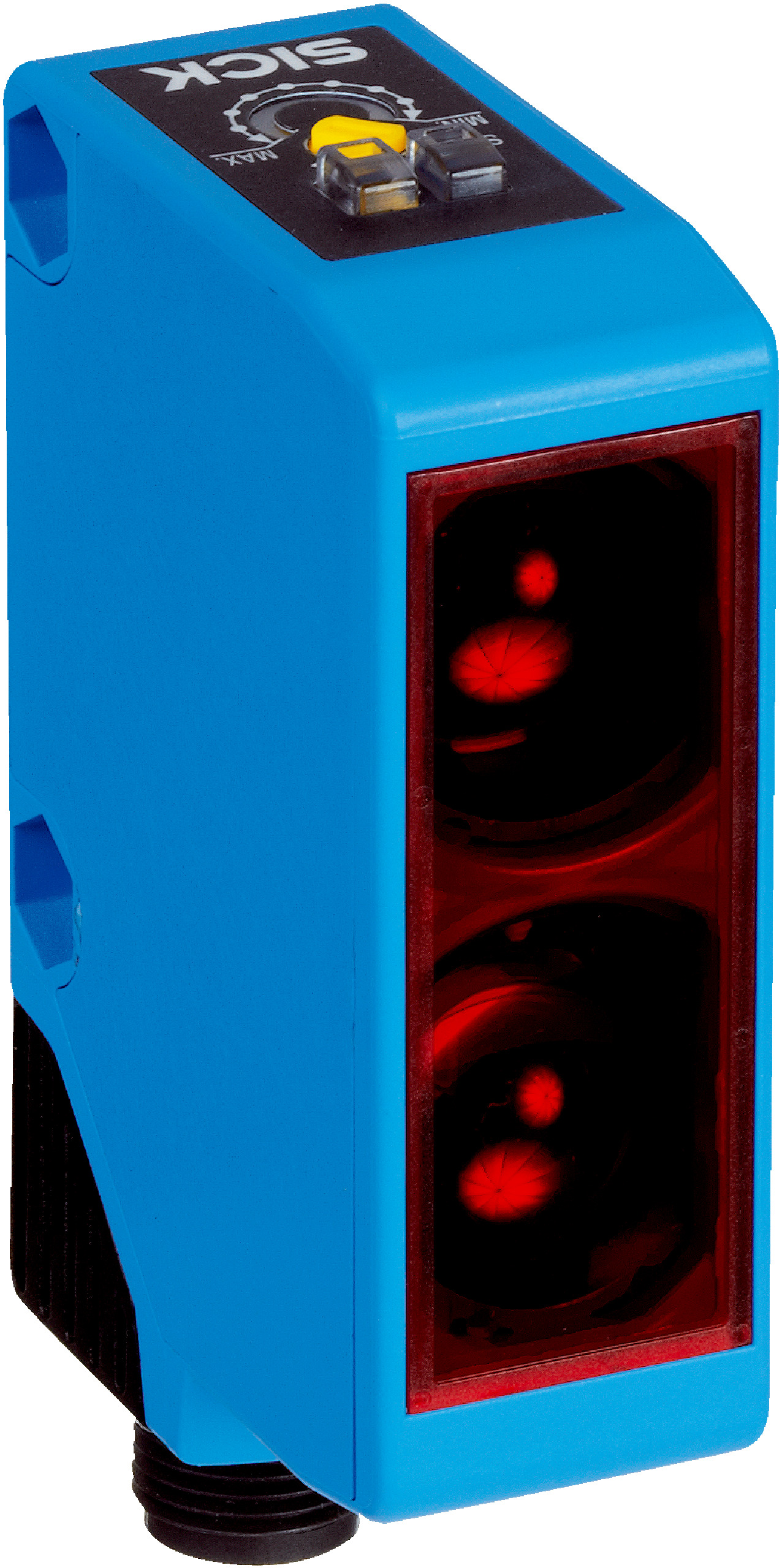

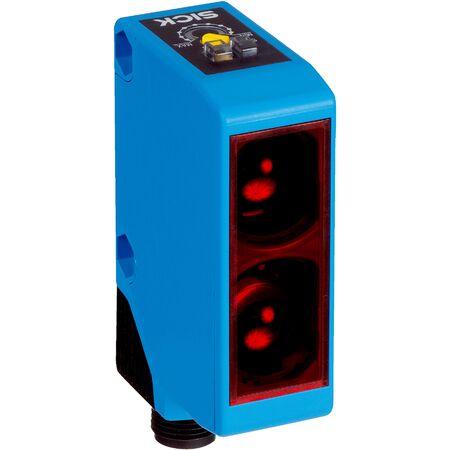

Photoelectric Proximity Sensor WTB250-2P2451 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB250-2P2451 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 200 mm to 1000 mm and a fast response time of ≤ 3 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 1000 mm
- Light source: Visible red LED
- Focus and angle of dispersion: Approx. 3°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 3 ms
- Switching frequency: 160 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Includes BEF-W250 mounting bracket
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 200 mm to 1000 mm with approx. 3° focus and angle of dispersion
- Potentiometer adjustment with 2 turns for sensitivity tuning
- Light/dark switching mode selectable via control cable
- High switching frequency of 160 Hz and fast response time ≤ 3 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing and PMMA optics material
- Includes BEF-W250 mounting bracket
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable design reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB250-2P2451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
