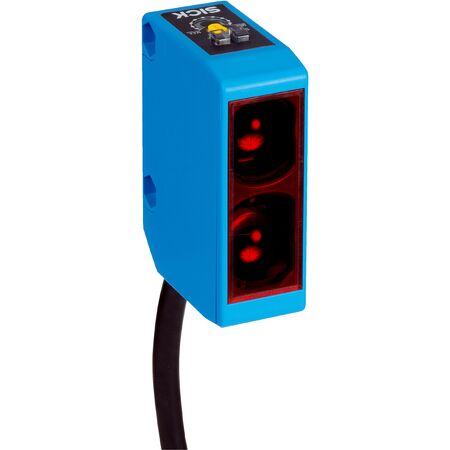

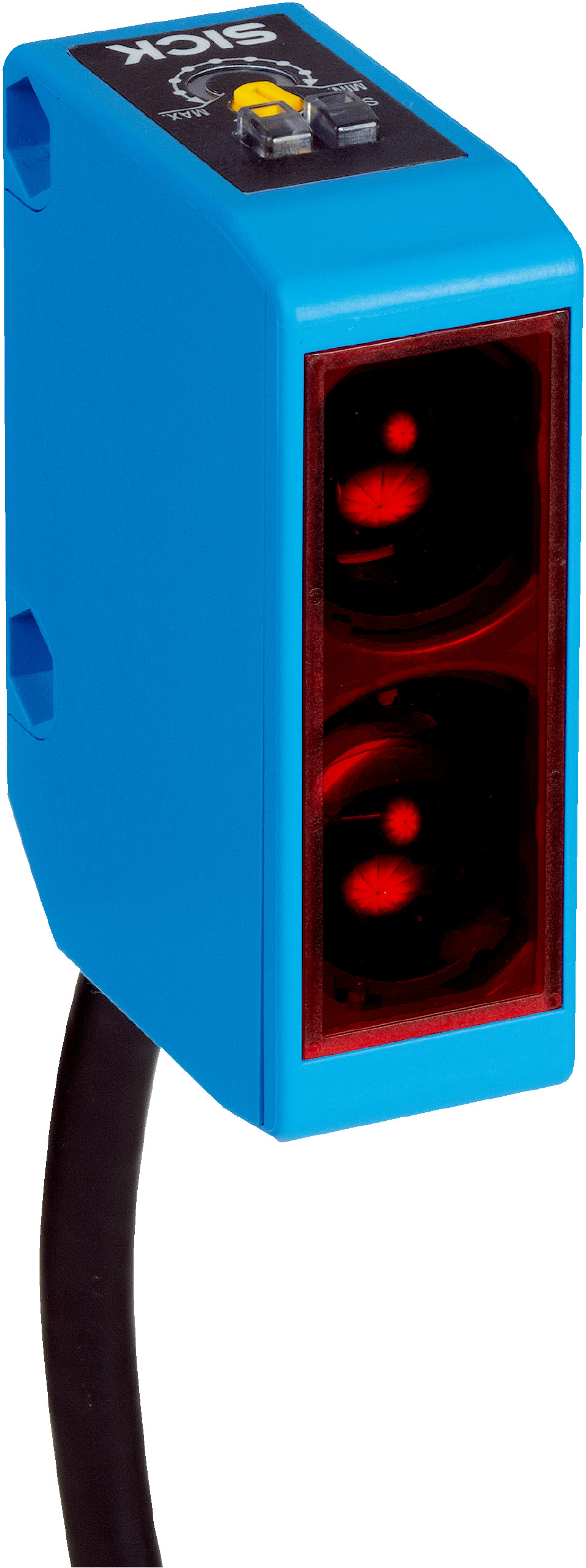

Photoelectric Proximity Sensor WTB250-2R1531 | Background Suppression | IP67 Rated | by SICK
The WTB250-2R1531 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 100 mm to 300 mm. With a robust IP67 rating and a high switching frequency of 33 Hz, this sensor ensures reliable object detection in manufacturing and safety applications, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 300 mm
- Light source: Visible red LED
- Focus and angle of dispersion: Approx. 3°
- Supply voltage: 24 V DC to 240 V DC/AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m length, PVC material
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Usage category: AC-15, DC-13 according to EN 60947-1
- Dimensions (H x L x W): 60mm x 44mm x 20mm
- Weight: 0.16 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 100 mm to 300 mm with approx. 3° focus and angle of dispersion
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz and response time ≤ 15 ms
- Cable connection with 5-wire, 2 m length, PVC material
- Protection class II and enclosure rating IP67 for robust use
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes environmental damage and waste
- Long operational life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB250-2R1531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
