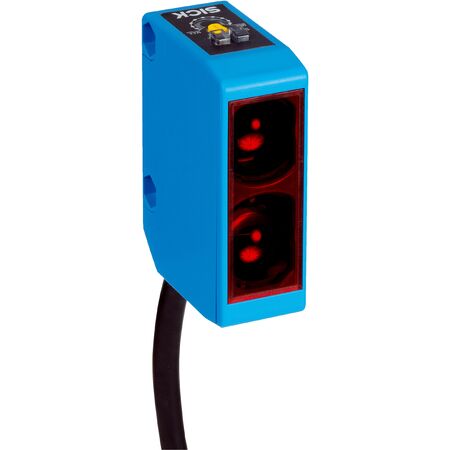

Photoelectric Proximity Sensor WTB250-2R1541 | Background Suppression | IP67 Rated | Relay Output | by SICK
The WTB250-2R1541 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 150 mm to 500 mm. With a robust IP67 rated housing and a high switching frequency of 33 Hz, this sensor ensures reliable object detection in manufacturing and material handling applications. Ideal for professionals seeking efficient and durable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 150 mm to 500 mm
- Focus and angle of dispersion: Approx. 3°
- Light source: Visible red LED
- Supply voltage: 24 V DC to 240 V AC/DC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC, 3 A at 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m length, PVC material
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes BEF-W250 mounting bracket
- Dimensions (H x L x W): 60mm x 44mm x 20mm
- Weight: 0.16 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 150 mm to 500 mm with approx. 3° focus and angle of dispersion
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz and response time ≤ 15 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide supply voltage range from 24 V DC to 240 V AC/DC
- Includes BEF-W250 mounting bracket
- Electromagnetic compatibility compliant with EN 60947-5-2
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB250-2R1541 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
