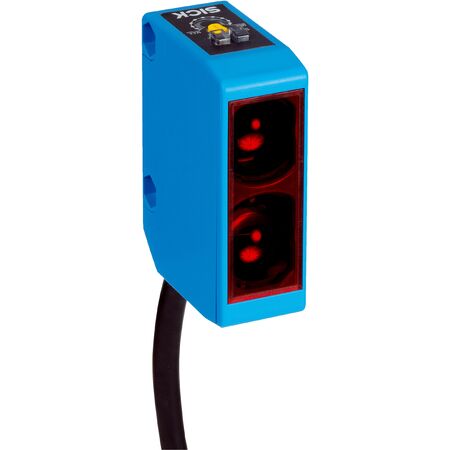

Photoelectric Proximity Sensor WTB250-2R1551 | Background Suppression | IP67 Rated | by SICK
The WTB250-2R1551 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 200 mm to 1000 mm. With a robust IP67 rating for dust and water resistance, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC to 240 V DC/AC
- Power consumption: ≤ 5 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m length, PVC material
- Cable diameter: Ø 6.4 mm
- Circuit protection: A and C types
- Protection class: II
- Overvoltage category: 2
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Usage category: AC-15, DC-13 according to EN 60947-1
- Dimensions (H x L x W): 60mm x 44mm x 20mm
- Weight: 0.16 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Sensing range from 200 mm to 1000 mm
- Focus angle approximately 3° with light spot size Ø 35 mm at 1000 mm
- Potentiometer adjustment with 2 turns for sensitivity tuning
- Relay switching output with change-over contacts
- Switching current up to 3 A at 240 V AC or 30 V DC
- Response time ≤ 15 ms and switching frequency 33 Hz
- Cable connection with 5-wire, 2 m PVC cable
- Protection class II and enclosure rating IP67 for dust and water resistance
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 5 VA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB250-2R1551 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
