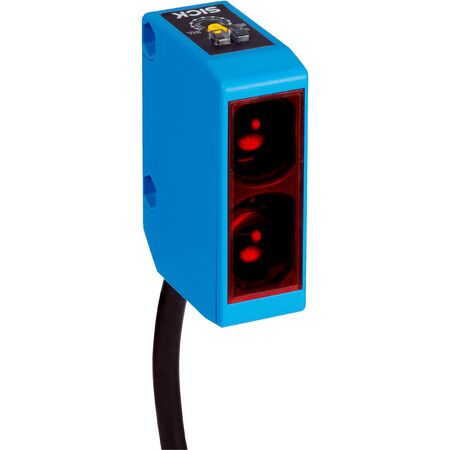

Photoelectric Proximity Sensor WTB250-2R1651 | Background Suppression | 200mm to 1000mm Sensing Range | IP67 Rated | by SICK
The WTB250-2R1651 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 200 mm to 1000 mm with background suppression. Ideal for manufacturing process control and material handling, this sensor offers a high switching frequency of 33 Hz and a robust IP67 enclosure for reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 1000 mm
- Light source: LED visible red light
- Focus angle: Approx. 3°
- Supply voltage: 24 V DC to 240 V DC or AC
- Power consumption: ≤ 5 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 5 m length, PVC material
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Includes BEF-W250 mounting bracket
- Dimensions (H x L x W): 60mm x 44mm x 20mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 200 mm to 1000 mm
- Focus angle approximately 3° with LED light source
- Potentiometer adjustment with 2 turns for sensitivity tuning
- Relay switching output with change-over contacts
- Switching current up to 3 A at 240 V AC or 30 V DC
- Response time less than or equal to 15 ms
- High switching frequency of 33 Hz
- Cable connection with 5-wire, 5 m length
- Protection class II and enclosure rating IP67 for robust use
- Operating temperature range from -25 °C to +55 °C
- Includes BEF-W250 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 5 VA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB250-2R1651 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
