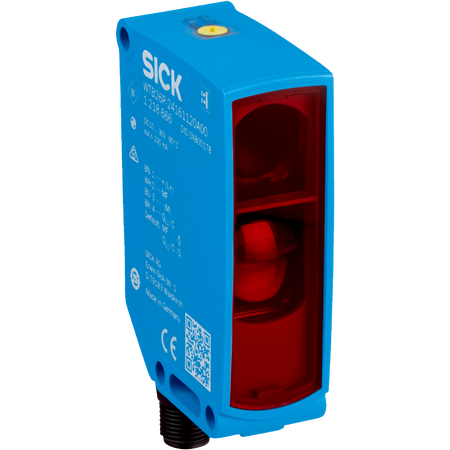

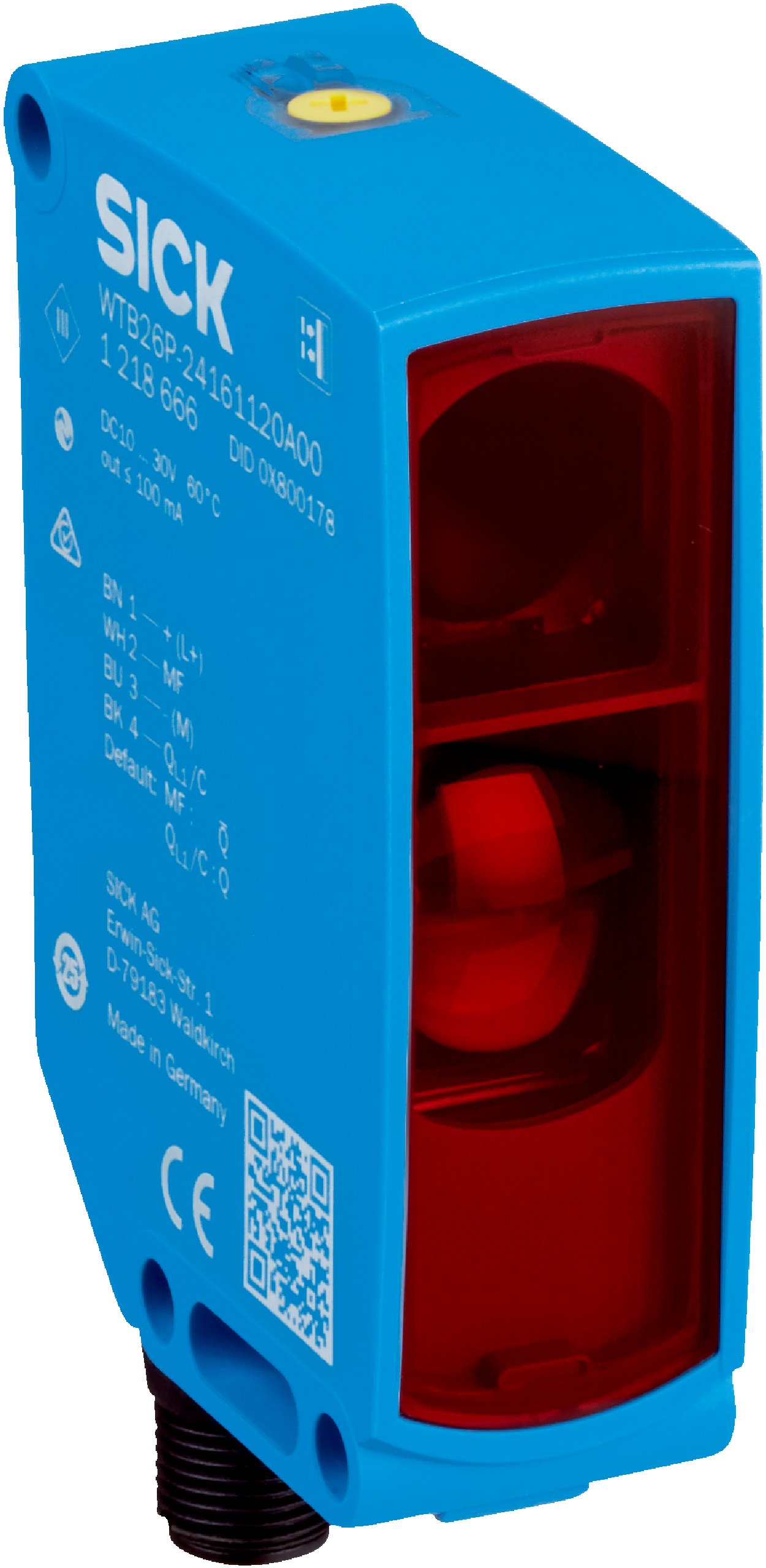

Photoelectric Proximity Sensor WTB26P | Adjustable Sensing Range | IO-Link Interface | IP66/IP67/IP69 Rated | by SICK
The WTB26P-24161120A00 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 180 mm to 1600 mm and an IO-Link interface for easy configuration. With a robust IP66/IP67/IP69 rated housing and a high switching frequency of up to 1000 Hz, this sensor is perfect for applications in material handling, packaging machinery, and robotics, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link proximity sensor, SICK WTB26P sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 1600 mm, adjustable switching threshold 180 mm to 1600 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 180 mm to 1600 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB26P-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
