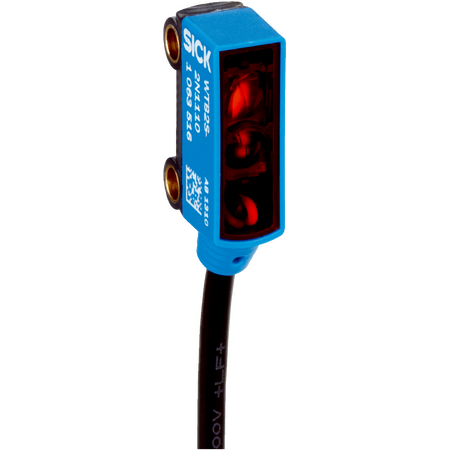

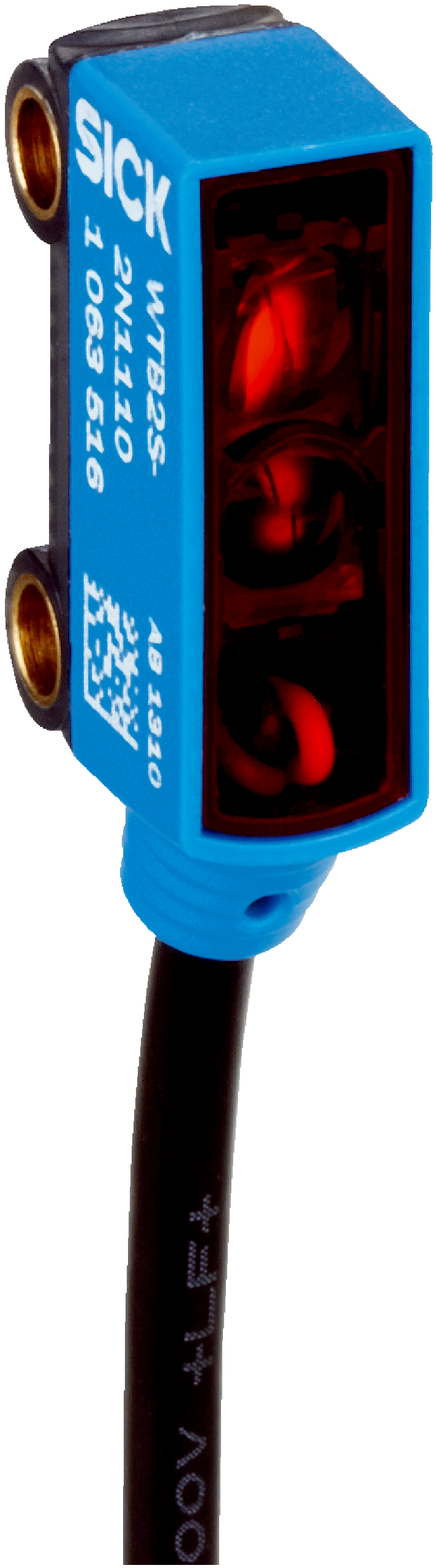

Photoelectric Proximity Sensor WTB2S-2N1360 | Background Suppression | IP67 Rated | 5mm to 60mm Sensing Range | by SICK
The WTB2S-2N1360 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 5 mm to 60 mm and a high switching frequency of 1,000 Hz. With its IP67 rated enclosure, this sensor is built to withstand dust and water, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Optical proximity switch, Photo proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 60 mm
- Light source: PinPoint LED, 640 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Circuit protection: A, B, D types
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 5 mm to 60 mm
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB2S-2N1360 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
