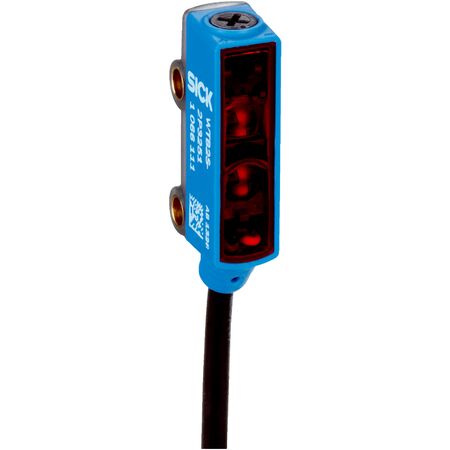

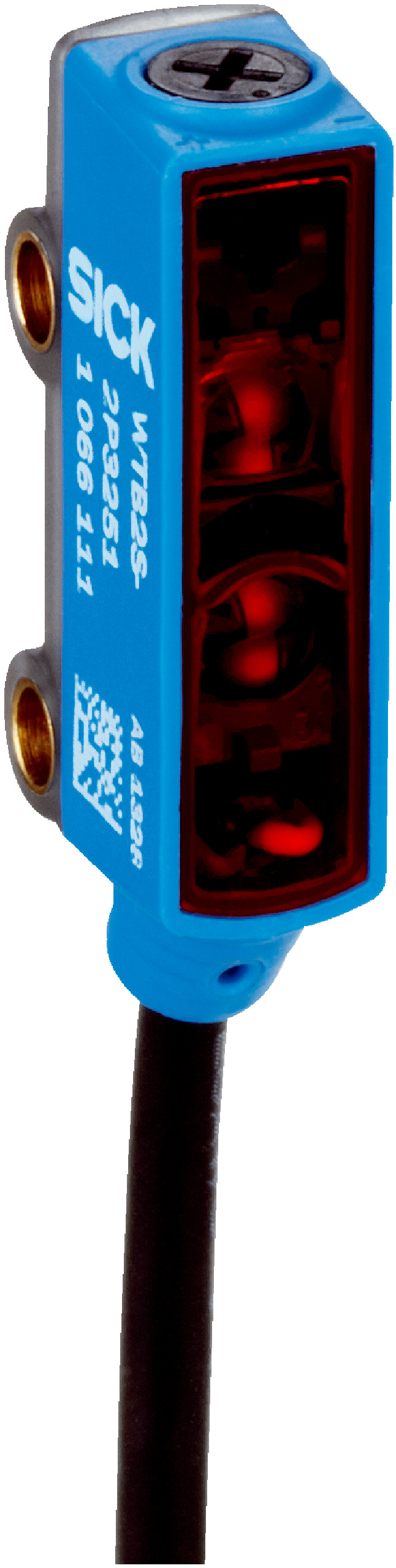

Photoelectric Proximity Sensor WTB2S-2N3060S19 | Background Suppression | IP67 Rated | High Switching Frequency | by SICK
The WTB2S-2N3060S19 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring background suppression and a sensing range from 5 mm to 90 mm. With a high switching frequency of 1,000 Hz and a rapid response time of under 0.5 ms, this sensor is perfect for detecting small objects in manufacturing and robotics applications. Its durable IP67 rated housing ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with special male 4-pin connector, 500 mm length
- Cable material: Plastic, PVC
- Conductor cross section: 0.09 mm²
- Cable diameter: 3 mm
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 4.5 mm at 40 mm distance
- Sensing range: 5 mm to 90 mm (typical), max 130 mm
- Background suppression from 70 mm
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 5 mm to 90 mm, max up to 130 mm
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable with special male 4-pin connector, 500 mm length
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and sensor alignment.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Robotics and material handling
- Quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB2S-2N3060S19 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
