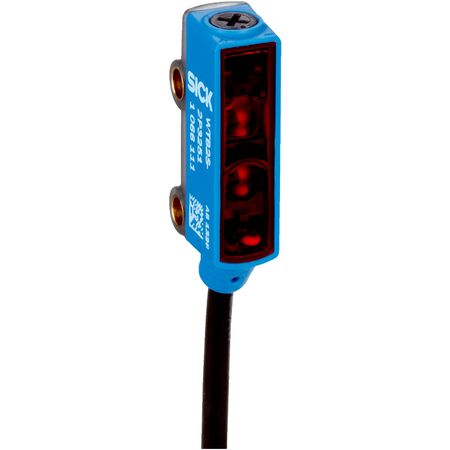

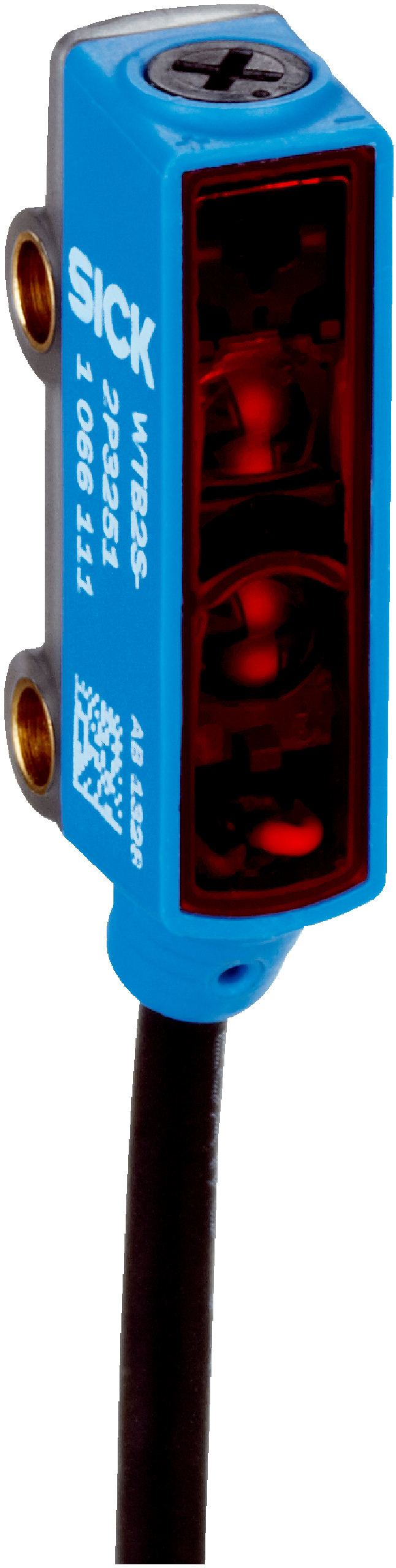

Photoelectric Proximity Sensor WTB2S-2P1151 | IP67 Rated | Fast Response Time | Adjustable Sensitivity | by SICK
The WTB2S-2P1151 Photoelectric Proximity Sensor is designed for industrial automation, featuring a fast response time of under 0.5 ms and an IP67 enclosure rating. With a sensing range from 18 mm to 110 mm and a robust ABS/PC housing, it’s perfect for detecting small objects in manufacturing processes and conveyor systems. Its adjustable potentiometer allows for precise sensitivity tuning, making it an ideal choice for reliable object presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 3.5 mm at 50 mm distance
- Adjustment: Potentiometer with 3 turns
- Housing material: Plastic ABS/PC, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 18 mm to 110 mm
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.5 ms and switching frequency of 1,000 Hz
- Light/dark switching mode with PNP output
- Adjustable potentiometer with 3 turns for sensitivity tuning
- Robust plastic housing made of ABS/PC and optics made of PMMA
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Object presence detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB2S-2P1151 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
