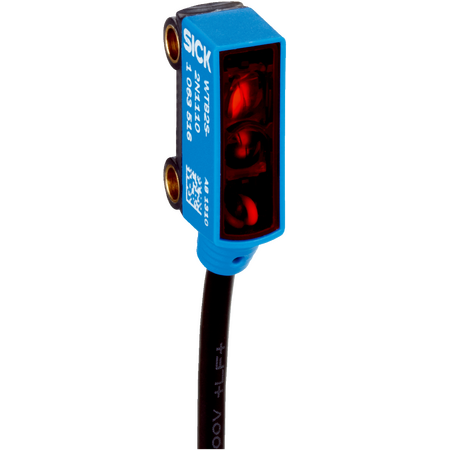

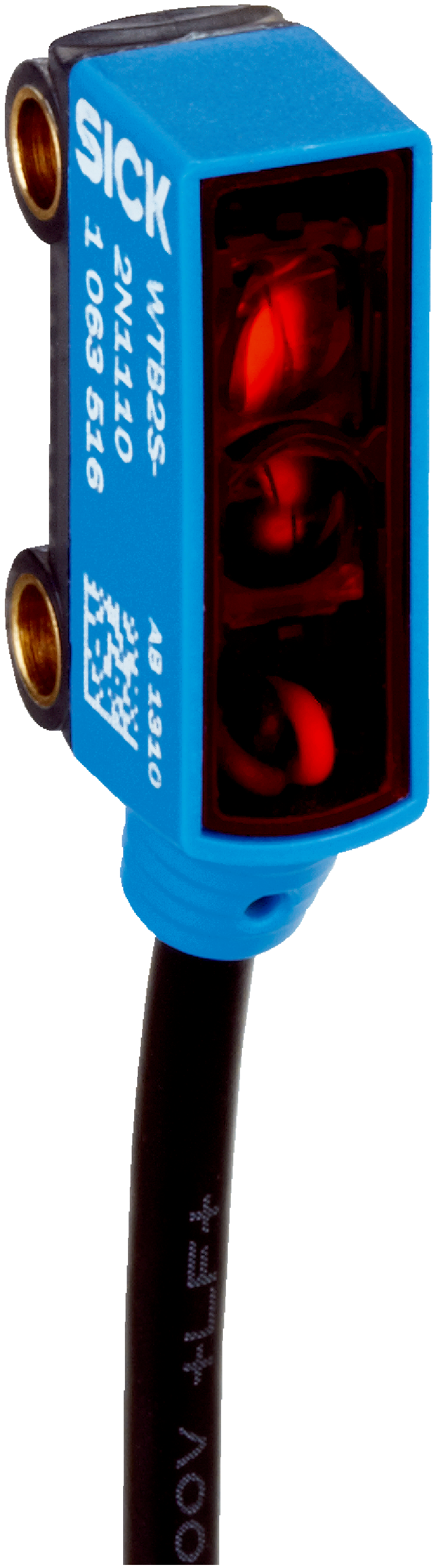

Photoelectric Proximity Sensor WTB2S-2P3130 | IP67 Rated | Fast Response Time < 0.4 ms | Background Suppression | by SICK
The WTB2S-2P3130 Photoelectric Proximity Sensor is designed for industrial automation, featuring a fast response time of less than 0.4 ms and an IP67 rated enclosure for dust and water protection. With a sensing range from 3 mm to 30 mm and a high switching frequency of 1,200 Hz, it's perfect for precise object detection in manufacturing lines and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK proximity sensor, WTB2S sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection type: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic, PVC
- Conductor cross section: 0.09 mm²
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 2 mm at 15 mm distance
- Background suppression from 38 mm
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 3 mm to 30 mm
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Cable with M8, 3-pin connector for easy installation
- Fast response time under 0.4 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing lines requiring precise object detection
- Quality control systems
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2P3130 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
