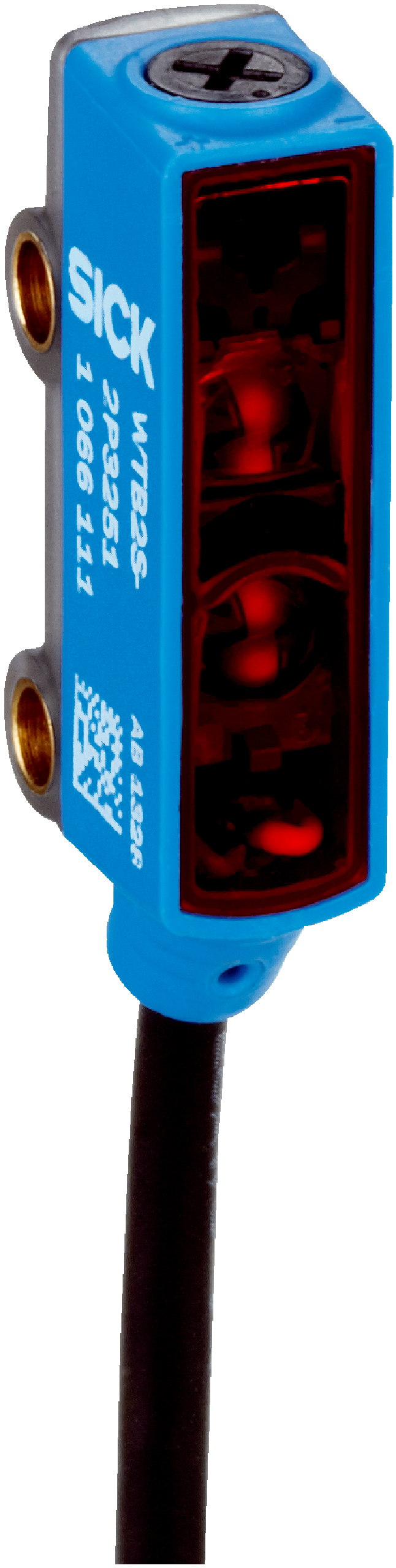

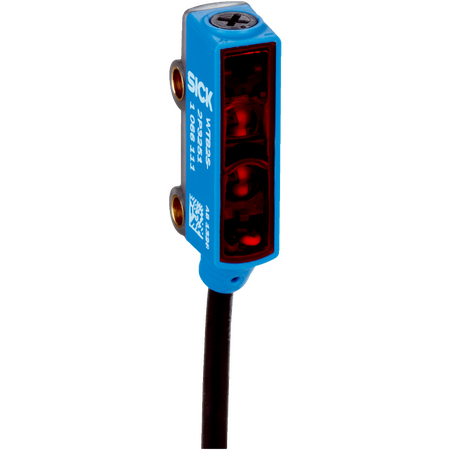

Photoelectric Proximity Sensor WTB2S-2P3151 | IP67 Rated | 1,000 Hz Switching Frequency | Adjustable Sensitivity | by SICK
The WTB2S-2P3151 Photoelectric Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and an adjustable sensitivity via a 3-turn potentiometer. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for detecting small objects in manufacturing and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, WTB2S Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 3.5 mm at 50 mm distance
- Adjustment: Potentiometer with 3 turns
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 18 mm to 110 mm, max up to 150 mm
- PinPoint LED light source with 640 nm wavelength
- Adjustable sensitivity via 3-turn potentiometer
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable with M8 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2P3151 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
