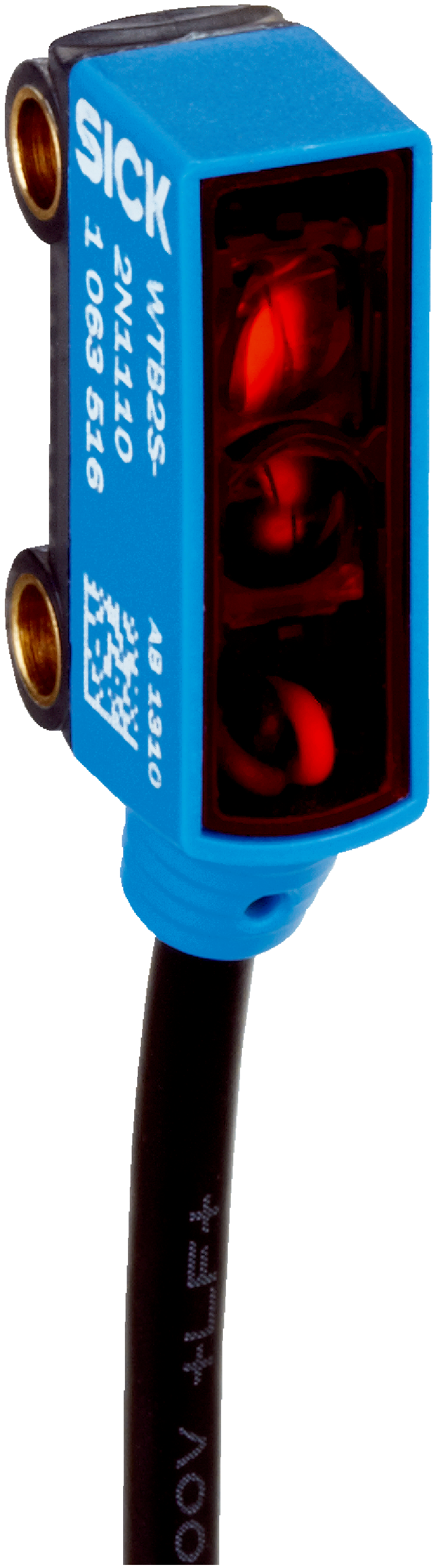

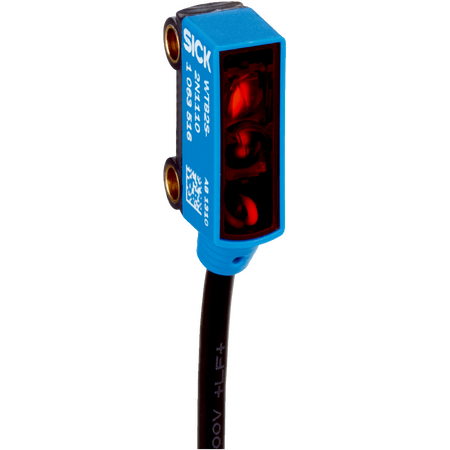

Photoelectric Proximity Sensor WTB2S-2P3160 | IP67 Rated | Fast Response Time < 0.5 ms | Background Suppression | by SICK
The WTB2S-2P3160 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a fast response time of under 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and quality inspection, this sensor features a sensing range from 5 mm to 60 mm, making it perfect for detecting small objects with accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, SICK proximity switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 4.5 mm at 40 mm distance
- Background suppression from 70 mm
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 5 mm to 60 mm, max 66 mm
- PinPoint LED light source with 640 nm wavelength
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Cable with M8, 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2P3160 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
