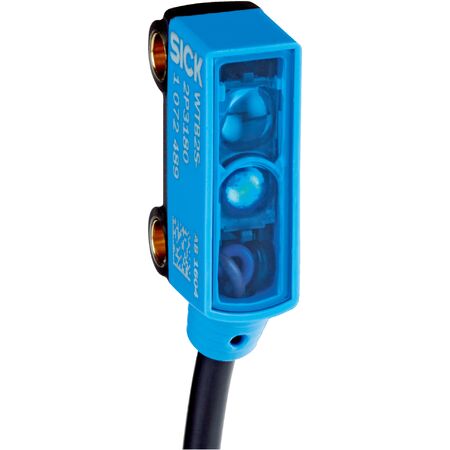

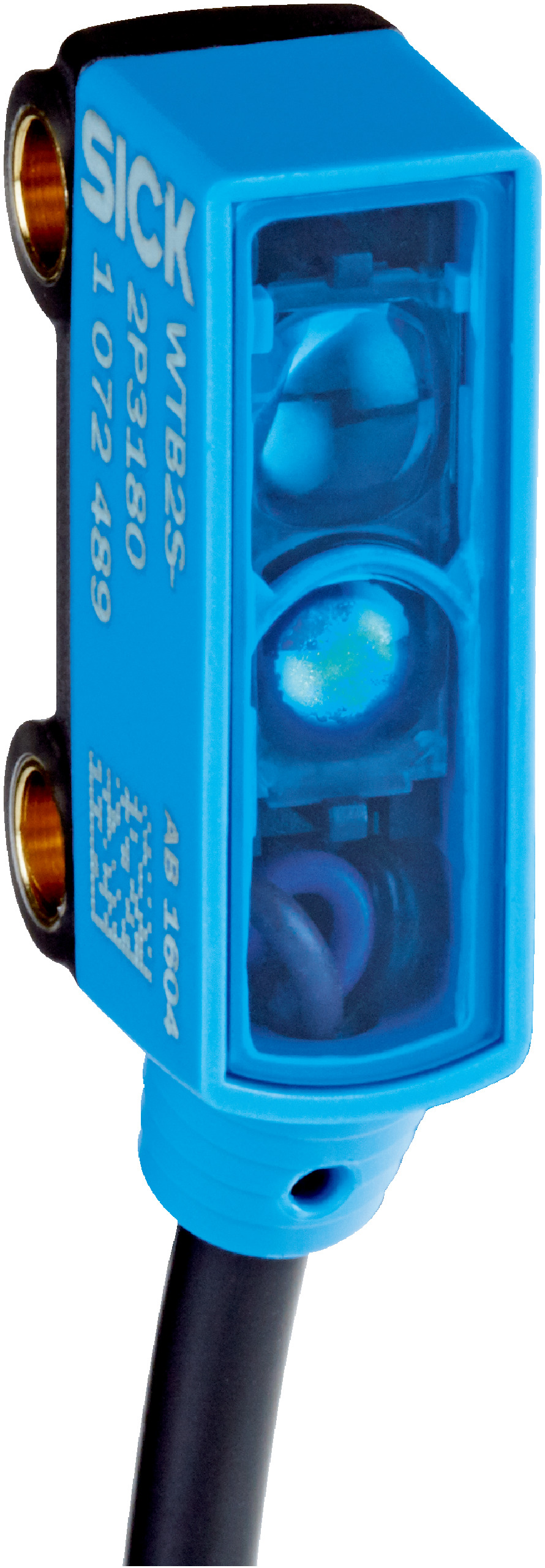

Photoelectric Proximity Sensor WTB2S-2P3180 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB2S-2P3180 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 4 mm to 40 mm and a fast response time of under 0.4 ms, it excels in manufacturing process control and material handling. Its IP67 rated enclosure ensures durability against dust and water, making it ideal for robotics and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Connection: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic, PVC; diameter 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible blue light emission
- Sensing range from 4 mm to 32 mm, max 40 mm
- LED light source with 445 nm wavelength
- High switching frequency of 1,200 Hz and fast response time under 0.4 ms
- IP67 rated enclosure for dust and water protection
- Cable with M8, 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines requiring precise object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2P3180 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
