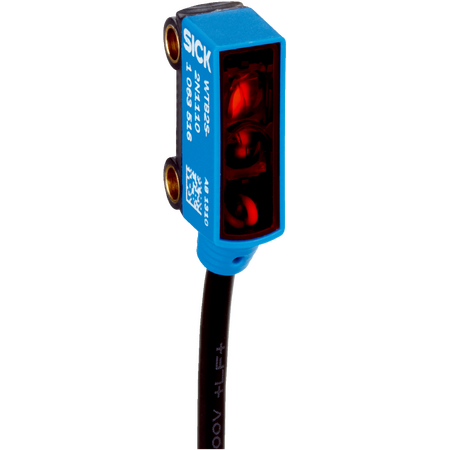

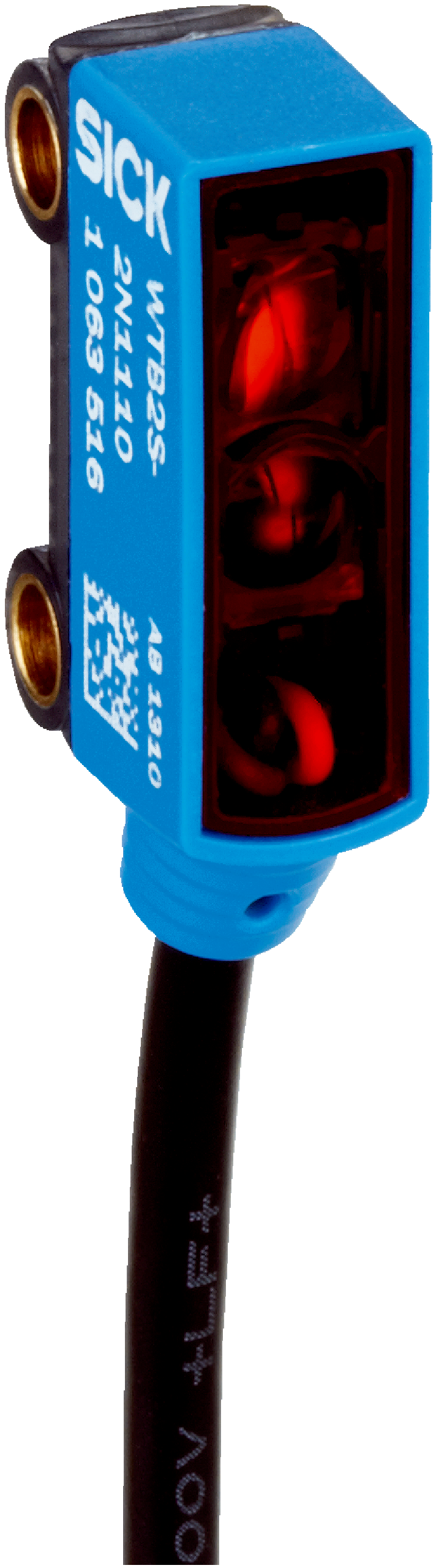

Photoelectric Proximity Sensor WTB2S-2P3260 | 5mm to 60mm Sensing Range | IP67 Rated | by SICK
The WTB2S-2P3260 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 5 mm to 60 mm and a high switching frequency of 1,000 Hz. With its durable IP67 rated enclosure and PinPoint LED light source, this sensor ensures reliable object detection in manufacturing and material handling applications, making it ideal for precise control in robotics and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor, Industrial object detector sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 60 mm
- Light source: PinPoint LED, visible red light at 640 nm wavelength
- Switching output: PNP, light/dark switching mode
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output current max: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M8 male connector, 4-pin, 200 mm
- Housing material: Plastic ABS/PC, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Circuit protection: A, B, D types
- MTTFD: 1,547 years
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 5 mm to 60 mm
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable with M8 male connector, 4-pin, 200 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and assembly lines requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low current consumption of 20 mA
- Durable IP67 rated housing reduces waste by extending product lifespan
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2P3260 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
